Aluminum Based Tri-Proof LED Luminaire

Fanxstar particularly specializes in manufacturing and supplying high-grade LED Tri-proof lights in China. Our sophisticated Trilamp A12 denotes superior aluminum-based LED Tri-proof luminaires specially designed for an IP65 linkable system. Over the past 7 years, we have consistently supplied excellent LED Tri-proof fixtures at highly competitive prices to clients all over the world. Our extensive business coverage encompasses over 90 countries and regions through export. We are wholeheartedly dedicated to actively collaborating with our reliable partners and discerning customers to significantly enhance and innovate more flexible, personalized, and user-friendly LED Tri-proof lighting solutions, aiming to establish a mutually beneficial and thriving business model..

Send Inquiry

Product Description

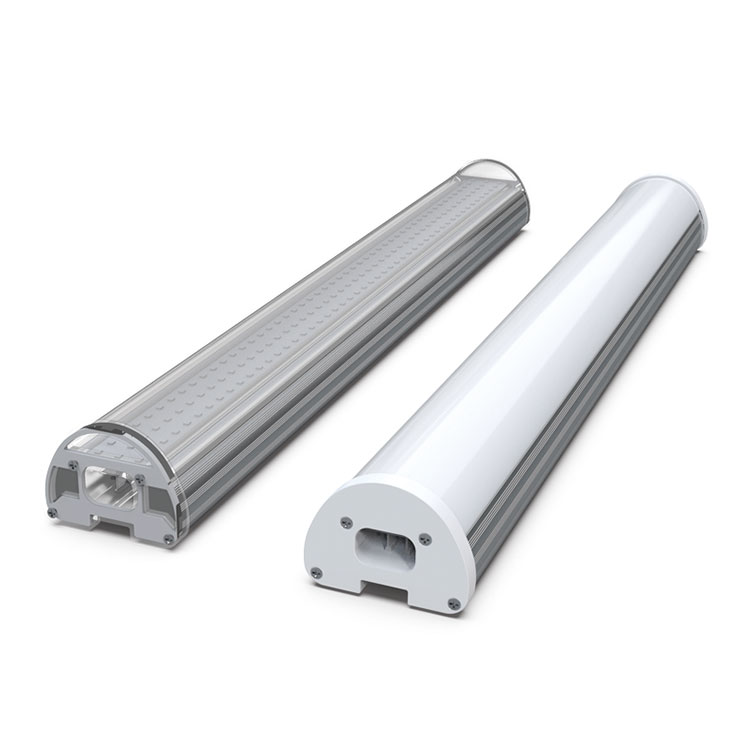

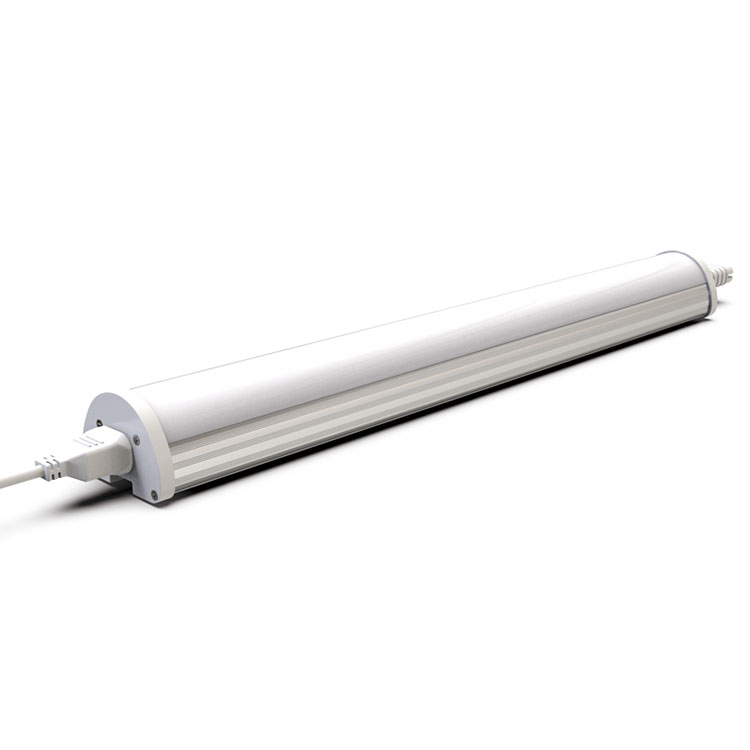

FANXSTAR Aluminum Based luminaire for FX Linear System IP65&IK10 Full Voltage LED Weatherproof Batten Trilamp A12

The Aluminum Based LED waterproof luminaire A12-GU for Linear System is a high-quality lighting solution that caters to not only guaranty durability but also delivers exceptional heat dissipation capabilities. Notably, the LED Tri-proof lights A12-GU comes with a remarkable 7-years warranty, which reflects our unwavering confidence in the quality and dependability of this product.

Boasting a high-output lumens of 140lm/w, LED Tri-proof lighting fitting A12-GU offers bright and uniform lighting, ensuring clear visibility in diverse environments. Whether utilized in industrial settings, outdoor areas, or commercial spaces, the A12-GU provides optimal illumination.

Furthermore, LED Weather Proof lamp presents a full voltage range of 100-277V, making it highly compatible and usable anywhere across the globe. What's more, it enjoys the advantage of no flicker, presenting a more comfortable and stable lighting experience.

In conclusion, the LED Tri-proof fixtures Trilamp A12-GU combines outstanding heat dissipation, high light efficiency, full voltage, flicker-free, and a long warranty, making it a trusted and appealing choice for your lighting needs wherever you are in the world.

Fast connection, excellent heat management

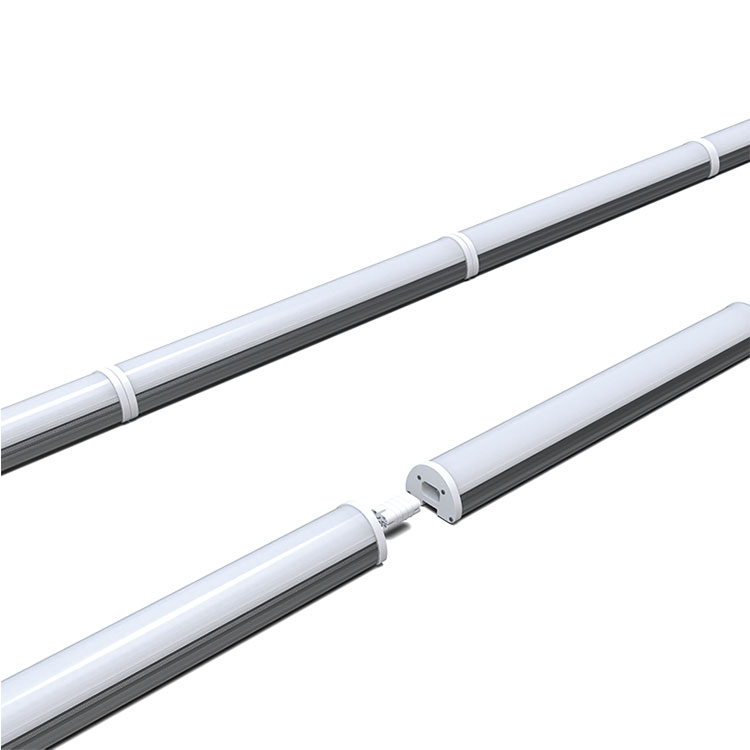

This FANXSTAR LED Tri-proof linear luminaire is equipped with multiple fast connectors, allowing you to quickly connect multiple linear lights to meet different lengths and lighting requirements. You can easily install these lights on walls, ceilings, floors, and other surfaces for better lighting options Moreover, it adopts extruded aluminum profile which provides excellent heat dissipation for the long-life span guarantee.

LED Tri-proof luminaires Trilamp A12 Ordering Guide

FANXSTAR LED Tri-proof luminaires Trilamp A12 Specification

LED Tri-proof luminaires Specifications data with 600mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A12-2FT18-MMK-X	2' LED Weatherproof Batten light, Voltage100-277V 50/60Hz, Power 18W, 80CRI, 27-65K LED Qty 96pcs	2700-6500K	140 lm/W

LED Tri-proof luminaires Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A12-4FT36-MMK-X	4' LED Weatherproof Batten light, Voltage100-277V 50/60Hz, Power 36W, 80CRI, 27-65K LED Qty 198pcs	2700-6500K	140 lm/W

LED Tri-proof luminaires Specifications data with 1500mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A12-5FT48-MMK-X	5' LED Weatherproof Batten light, Voltage100-277V 50/60Hz, Power 48W, 80CRI, 27-65K LED Qty 288pcs	2700-6500K	140 lm/W

LED Tri-proof luminaires Specifications data with 2400mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A12-8FT65-MMK-X	8' LED Weatherproof Batten light, Voltage100-277V 50/60Hz, Power 65W, 80CRI, 27-65K LED Qty 360pcs	2700-6500K	140 lm/W

FANXSTAR LED Tri-proof luminaires Trilamp A12 Feature And Application

Seamless connectable with IP65 & IK08 protection

High Lumens Output: Extra=140 lm/W & 7 years Warranty

100-277Vac Full Voltage & Flicker-Free < 1%

Customized length acceptable: 2-12'inches

Super higher power solution supportable: 8FT-120W-20,000lm

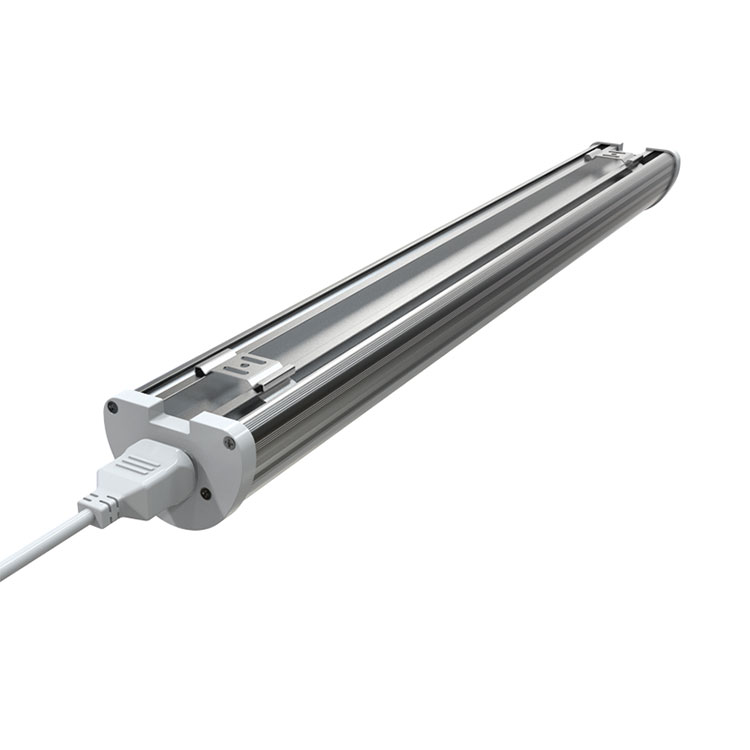

Surface mounting with hidden back wiring and brackets design

FANXSTAR LED Tri-proof luminaires Trilamp A12 Details

Seamless connectable with IP65 & IK08 protection of LED tri-proof lights

Customized length acceptable: 2-8ft inches of LED Tri-proof lamp

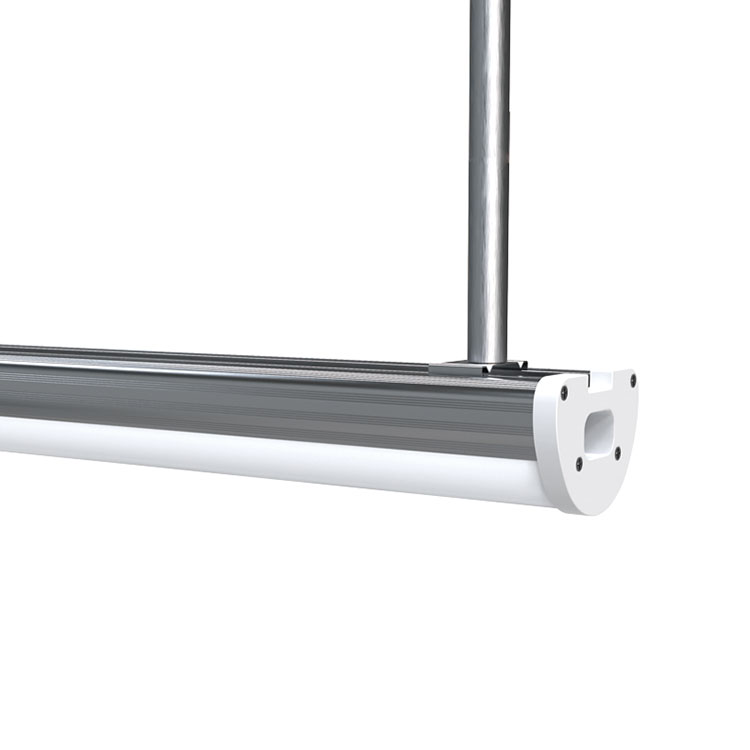

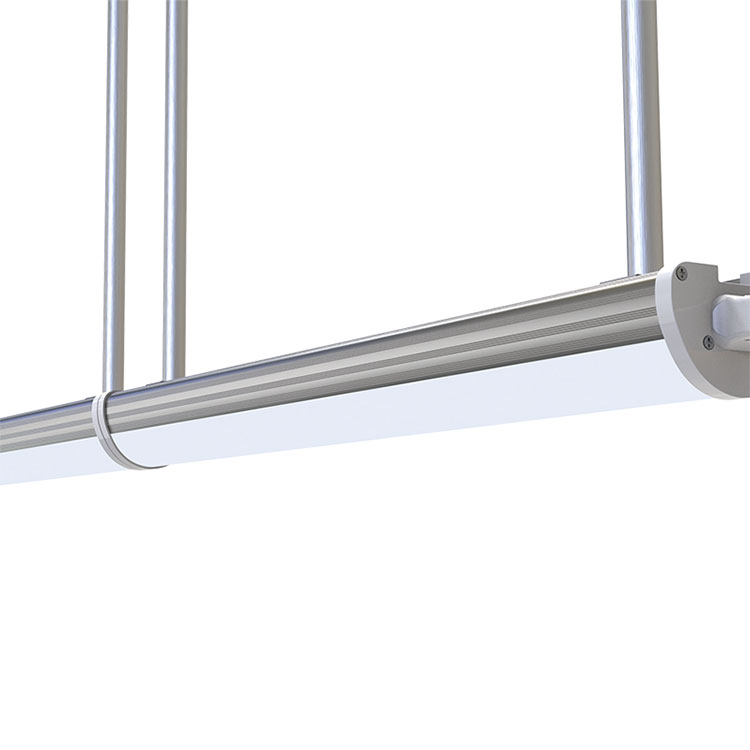

Surface mounting with hidden back wiring and brackets design of LED tri-proof lights

Linking 1000W max @ 230V on dimming mode with one input suitable for 0~10V, DALI dimming. Build-in Manual-test/Self-test/DALI-2 emergency kits of LiFePO4 as option of emergency LED Tri-proof luminaire
