High Output LED Tri Proof Light

Fanxstar is a company specializing in the production and supply of LED tri-proof lamps in China. The Trilamp A9 unmatched combination of economic and performance LED weather- proof battens. In the last few years, we have been providing high quality LED tri-proof luminaires at competitive prices to customers in more than 90 countries and regions around the world. The Fanxstar team keeps in mind that we will actively cooperate with clients to continuously improve and explore more flexible, customized and user-friendly LED Tri proof lights in the further.

Send Inquiry

Product Description

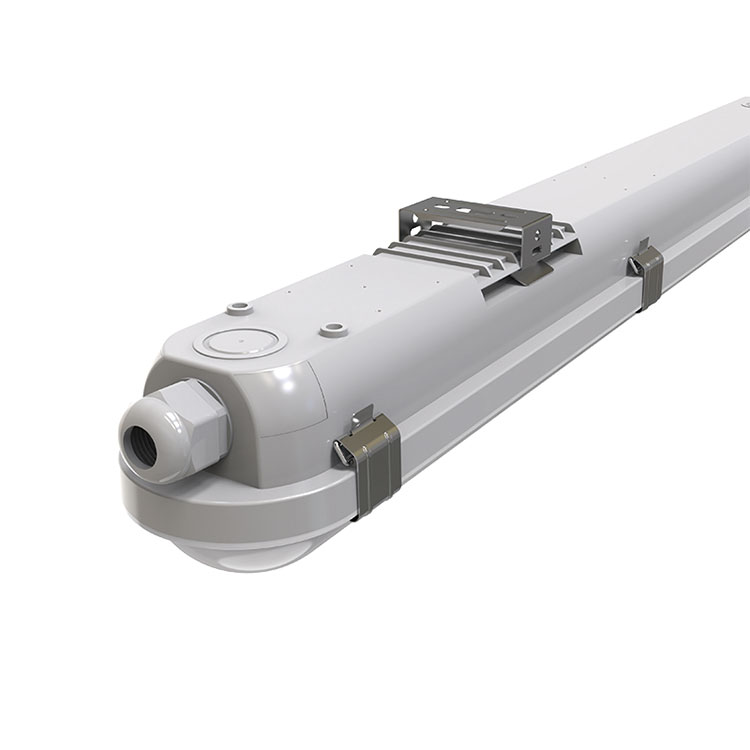

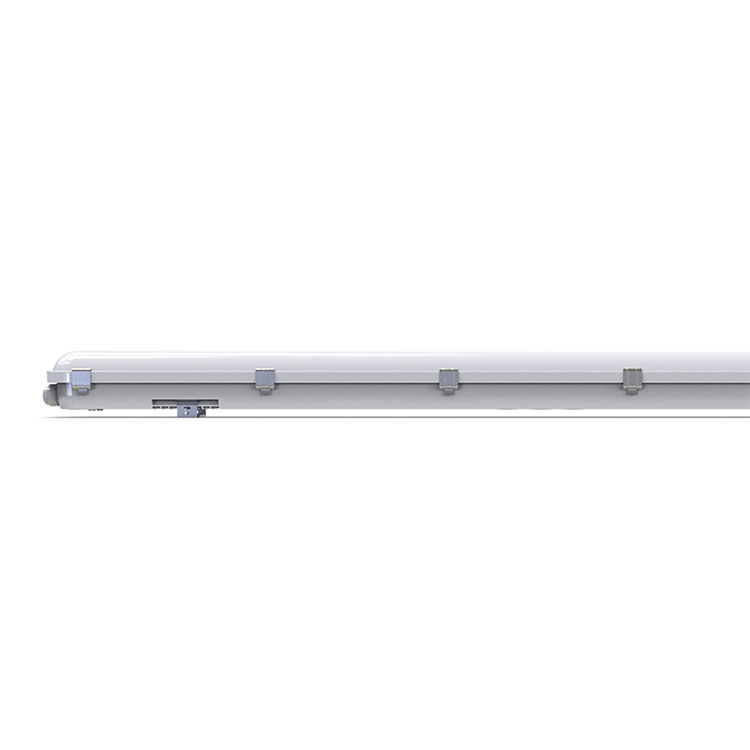

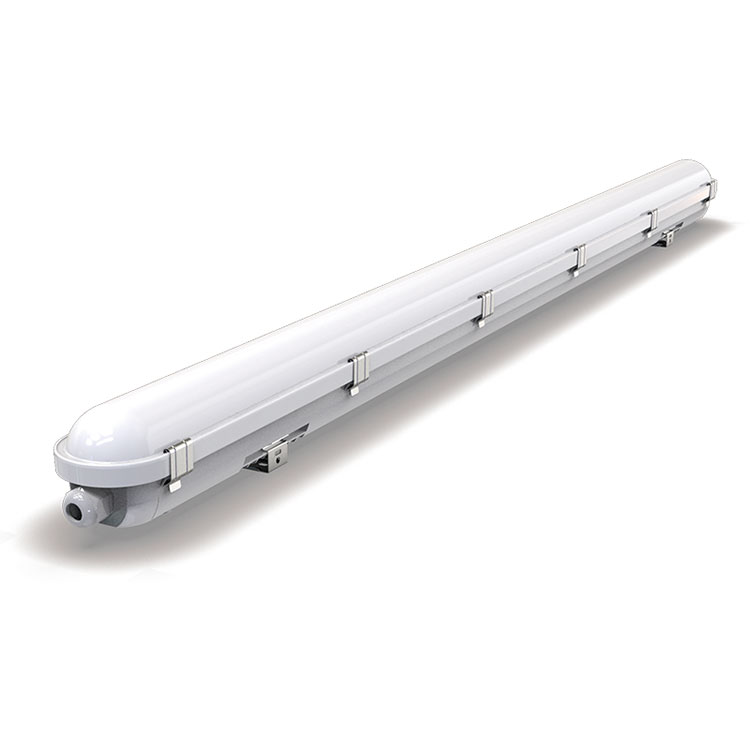

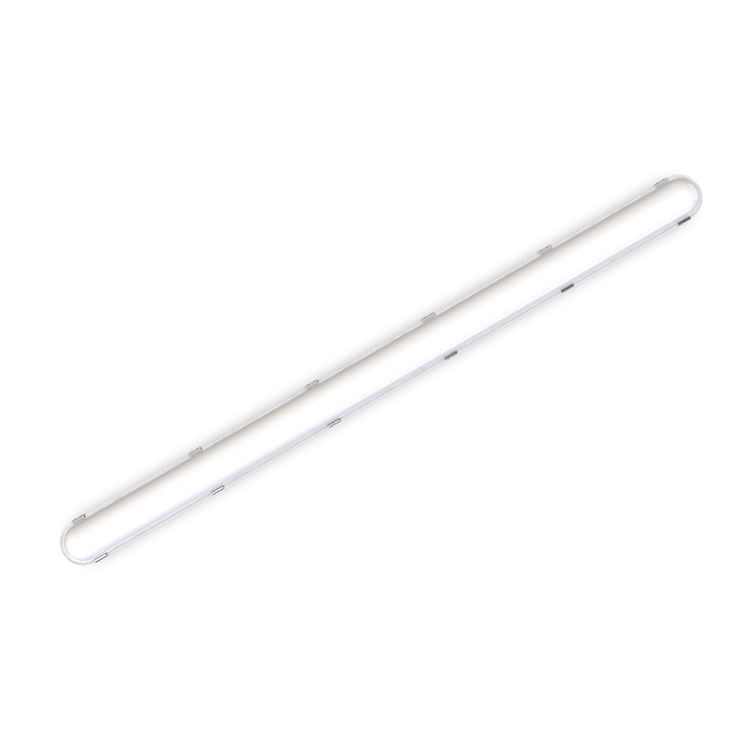

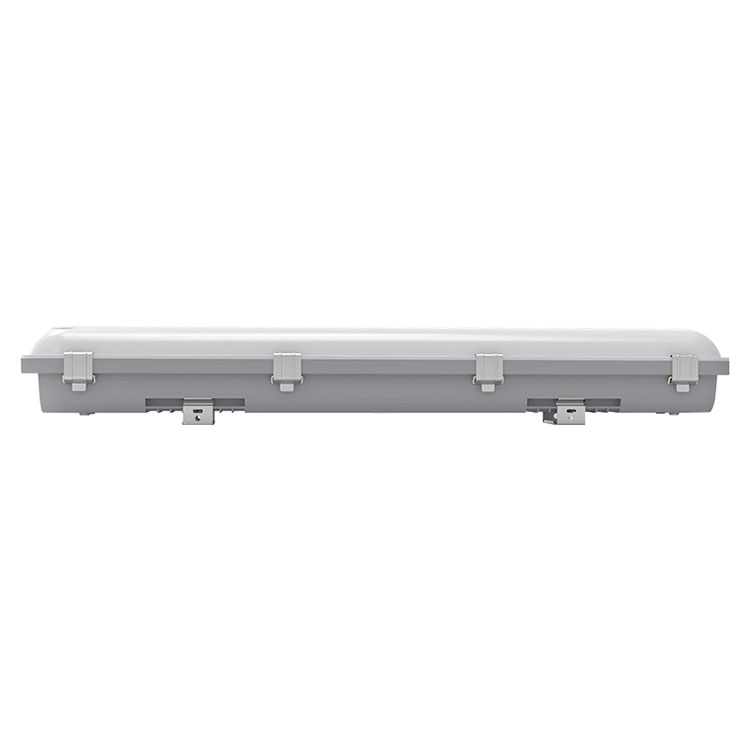

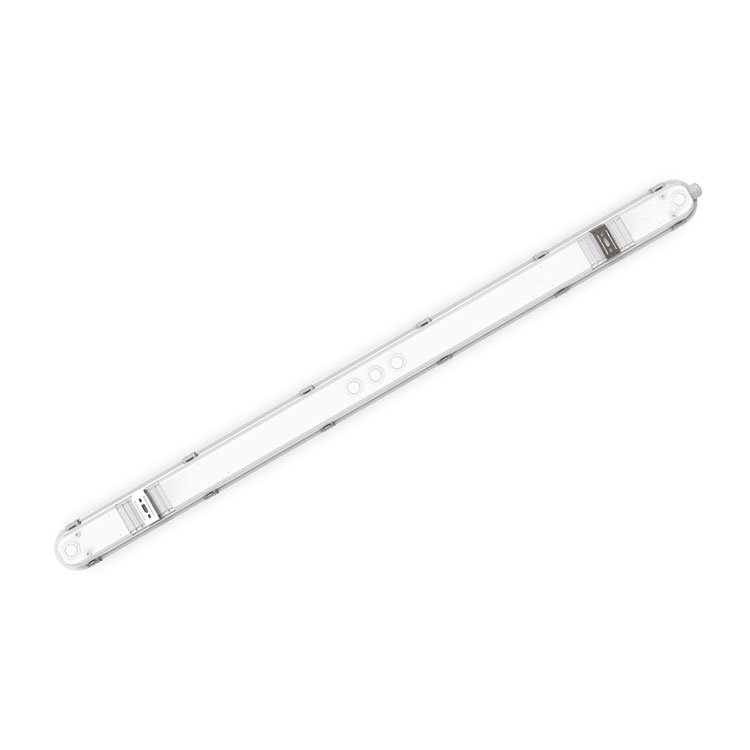

FANXSTAR High Lumens LED IP66 Weatherproof Batten Trilamp A9

FANXSTAR TLA9 is an LED Tri-proof luminaire, replacing traditional lamps with better quality, affordability, and energy efficiency. Upgraded to IK10 & IP66 ratings, it offers flicker-free operation, ENEC approval, and extra-high efficiency (EU=160lm/w).

With a robust power supply operating at temperature Ta 60, the LED Tri-proof light TLA9 can withstand high temperatures up to 55ºC and is resilient to lightning surges. Tri-CCT(3000K-4000K-5700K), and available in sizes from 600mm to 1800mm, the led Tri Proof light offers suspended, walled, and surface-mounted versions.

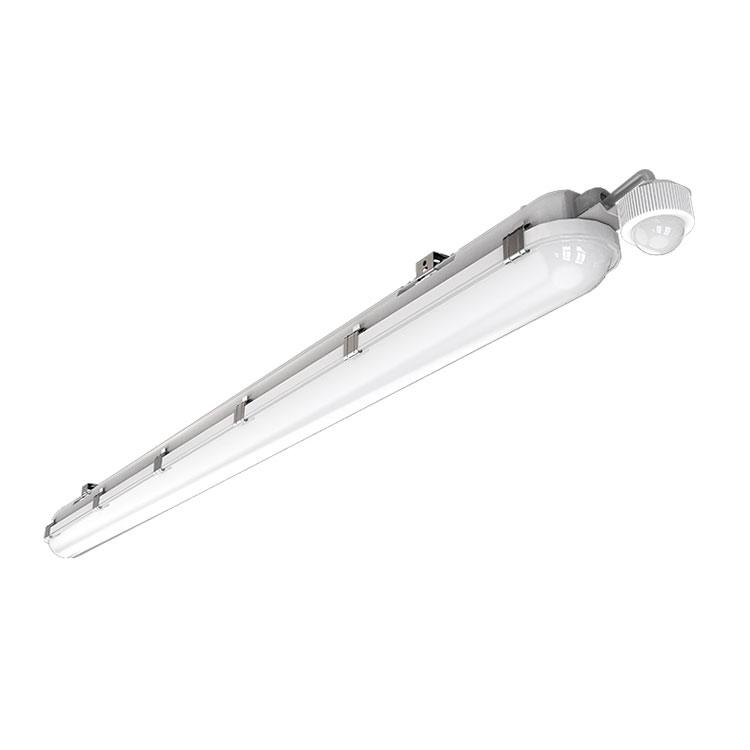

The LED Tri-proof lighting fixture options include standard 1200mm, emergency 2W3HRS with LiFePo4 battery, DALI2.0, 1-10V dimming, and microwave or PIR sensors. The LED Tri-proof light comes with a 5-year warranty.

LED TriProofs Trilamp A9 Ordering Guide

FANXSTAR LED Triproof light Trilamp A9 Specification

LED Tri Proof luminaires Specifications data with 600mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Normal	A9-2FT20-MMK-N	2' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 20W, 80CRI,20-65K LED Qty 64pcs	2700-6500K	120 lm/W
□	PRO	A9-2FT20-MMK-P	2' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 20W, 80CRI,20-65K LED Qty 171pcs	2700-6500K	165 lm/W

LED Tri Proof luminaires Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Normal	A9-4FT40-MMK-N	4' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 40W, 80CRI,20-65K LED Qty 102pcs	2700-6500K	120 lm/W
□	PRO	A9-4FT40-MMK-P	4' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 40W, 80CRI, 27-65K LED Qty 266pcs	2700-6500K	165 lm/W

LED Tri Proof luminaires Specifications data with 1500mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Normal	A9-5FT60-MMK-N	5' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 60W, 80CRI,20-65K LED Qty 153pcs	2700-6500K	120 lm/W
□	PRO	A9-5FT60-MMK-P	5' LED Weatherproof Batten light, Voltage200-240V 50/60Hz, Power 60W, 80CRI,20-65K LED Qty 342pcs	2700-6500K	165 lm/W
