High Performance LED Emergency Luminaire 15W 20W

FANXSTAR is a leading supplier of LED Tri proof lighting Trilamp A11 in China.The product Trilamp A11 is a high performance emergency LED Tri proof luminaire. Our company adhere to the independent R&D and intellectural property management, and owns advanced R&D and testing equipment, and it had mature and stable LED Tri proof luminaires product development system and owned more than 30 patents in the LED field. Join us in shaping a brighter and more sustainable future with our cutting-edge Emergency LED tri proof lighting fixtures and LED lighting products.

Send Inquiry

Product Description

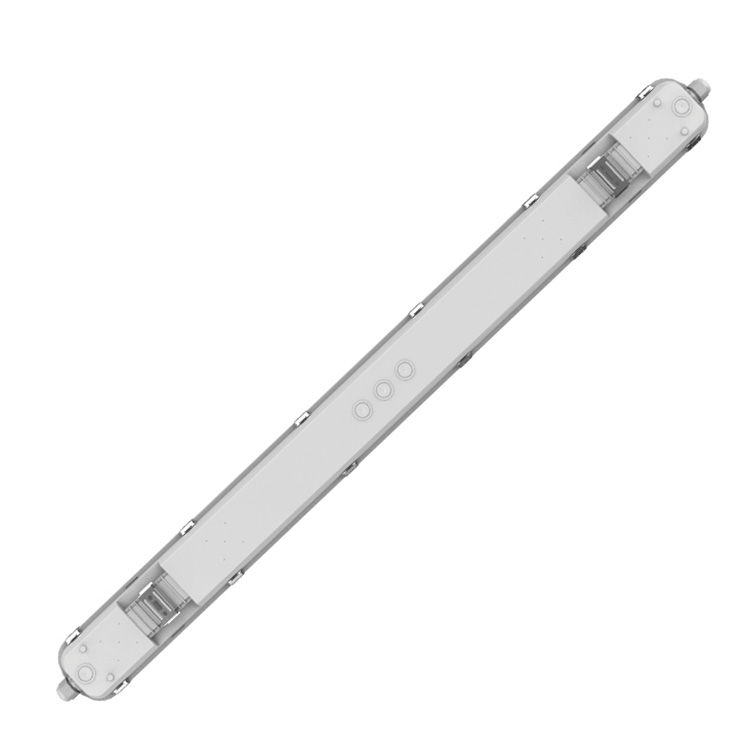

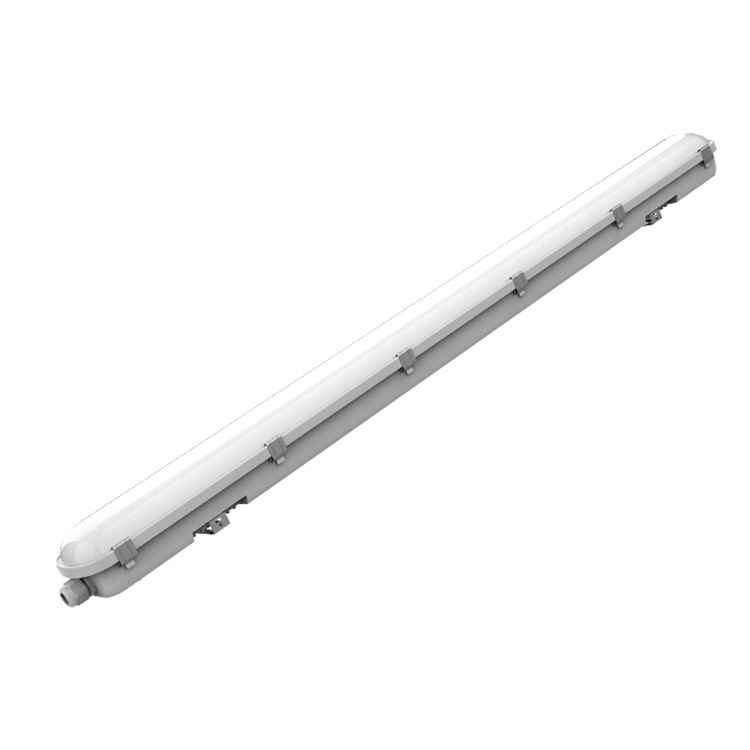

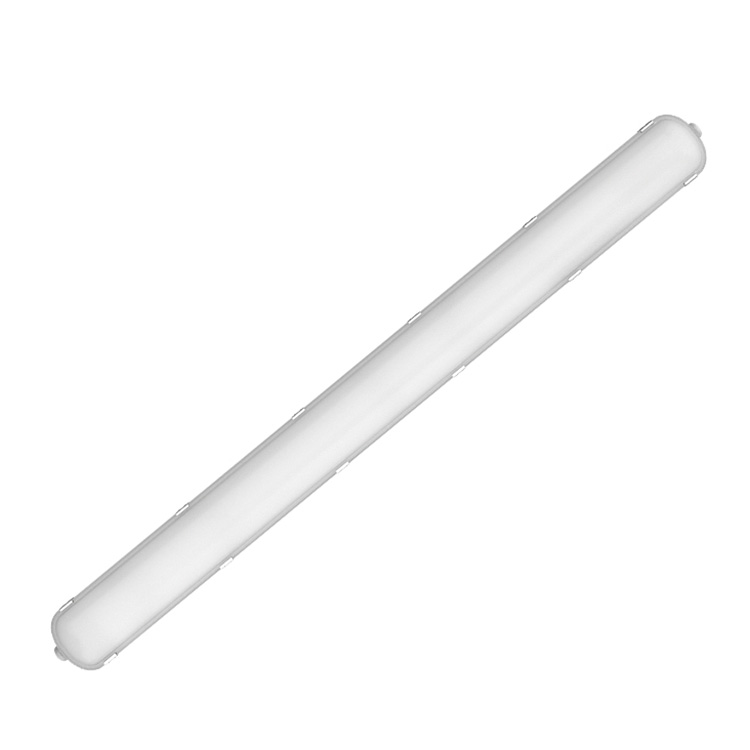

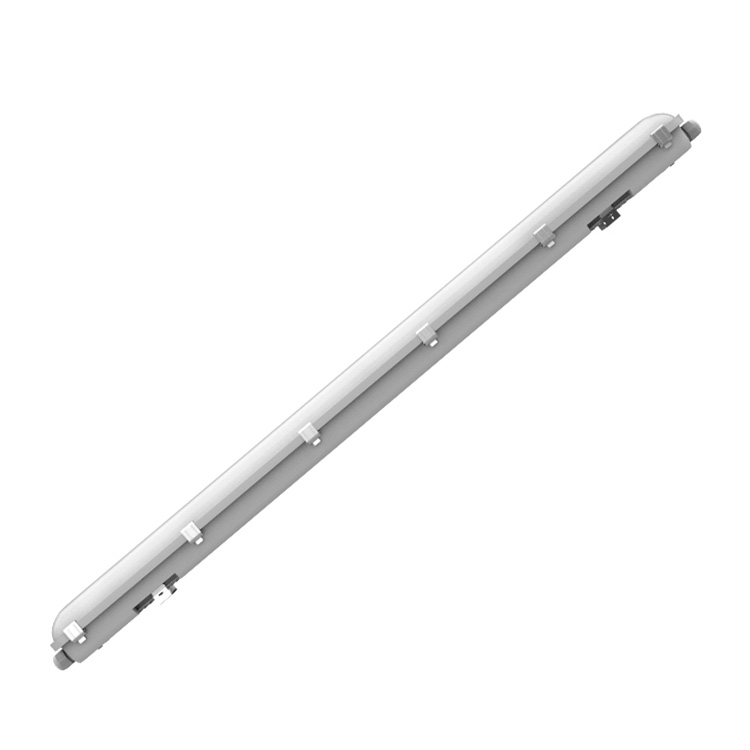

FANXSTAR high performance emergency LED Tri proof luminaire Trilamp A11

Trilamp A11 is a high-performance Emergency LED Tri proof luminaire , innovatively designed and produced by Fanxstar, designed to replace traditional fluorescent double tubes. Similar to the previous mention of the Trilamp AXE Family, the LED Tri proof light Trilamp A11 represents an ultimate weatherproof multi-application emergency LED Tri proof lighting solution. It combines powerful lighting performance with an unobtrusive design, ensuring that it seamlessly integrates into different environments while providing reliable emergency lighting capabilities.The LED Tri proof luminaire supports various emergency lighting functions, including Manual Testing, Self Testing, and DALI-2 version, catering to different emergency lighting management requirements. The typical emergency power and duration time is 15W3HRS or 20W2HRS.At trilamp emergency range, we illuminate the path to safety and efficiency. LED tri proof lights include a five-year warranty.

FANXSTAR LED Tri proof luminaires Trilamp A11 Specification

Item	Part Number	A11-4FT44-MMK-E
Item	Description	High Performance Emergency LED Waterproof Batten Light
Working	Mode of Operation	Multimode - High Performance Emergency
Input	Voltage&Frequency	220-240Vac, 50/60Hz
Input	Installation	923/PA14 - Terminal blocks
Output	Light Source	High lumens SMD2835
	Color Temperature	MM=27-65 stands for 2700-6500K
	Luminous Flux	140lm/w±10%
	Power Consumption	44W(Maintained), 3W (Non-Maintained)
Controls	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
Controls	Multimode	Dimming, Sensor and Emergency for optional
Emergency	Charger	16hr intelligent 3-stage charger with battery management system
	Emergency Power	3W (Non-Maintained), 20W as options
	Duration Time	> 120 minutes
	Testing Facility	Manual test, Self test, DALI2.0
	Indicators	Battery charger green LED, Function failure through red LED
Physical	Construction	Diffuser - high transmission opal polycarbonate, chassis - polycarbonate
	Mounting	Surface mounted - ceiling / wall
	Colour	Gray
	Dimensions L x W x H(mm)	1200 mm x 110 mm x 88mm
	IP/IK Rating	IP65 & IK10
	Weight	4.5kg
	Warranty	5 years on product, 3 years on battery
Environment	Operating Temperature	0° to 50°C-
Environment	Relative Humidity	10 to 95%
Compliance	Standards	CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293
Compliance	AS/NZS 2293 Classification	C0 D100, C90 D63
Accessories	Microwave Dimming Sensor	P/N: A11S: FS007B/FS010ER
Accessories	Replacement Battery	P/N: A11E: LiFePO4 6.4V 2000mA/12.8V 6000mA
