Intelligent 5.8G Sensor Weatherproof Light

Introducing the Trilamp A4 from FANXSTAR, a pinnacle in intelligent lighting technology. This innovative product boasts a smart 5.8G sensor, LED tri-proof capabilities, embodying FANXSTAR's deep expertise in manufacturing and supplying LED tri-proof lamps in China. In scenarios where LED tri-proof lighting is crucial, FANXSTAR rises to the challenge, delivering superior quality and a diverse range of options to meet the needs of diverse customers. Our extensive collection of effortlessly installable LED tri-proof luminaires is tailored for a wide array of applications and settings. Choose FANXSTAR and elevate your expectations with unparalleled performance and a breadth of choices. Our definitive collection of top-tier LED tri-proof lighting sets new standards in the market, redefining what's possible in intelligent lighting solutions. Trust FANXSTAR to illuminate your world with cutting-edge technology and exceptional service.

Send Inquiry

Product Description

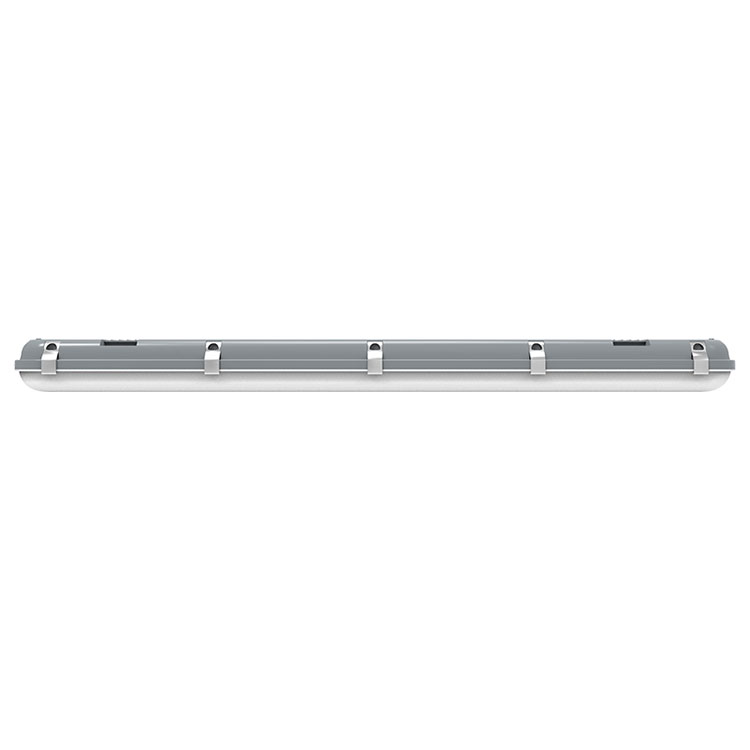

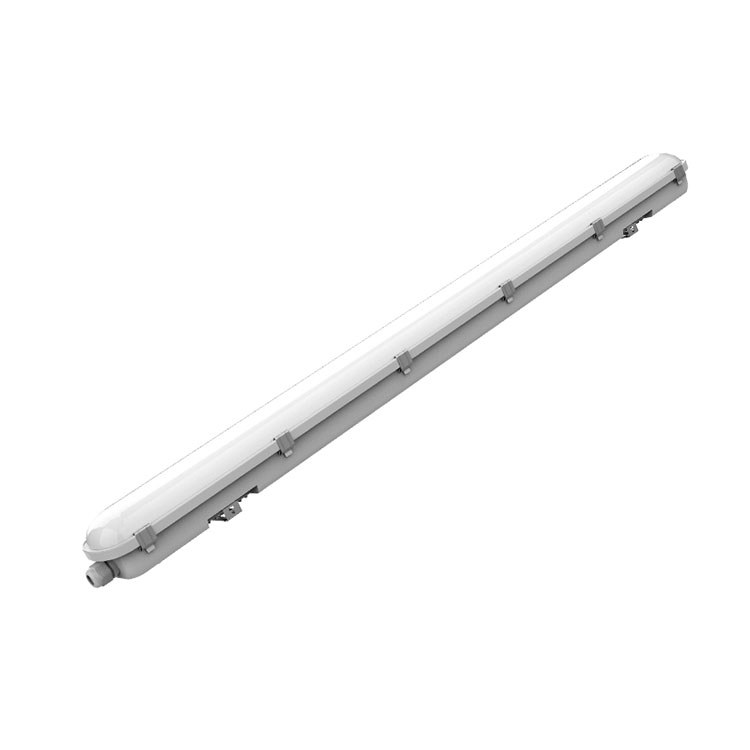

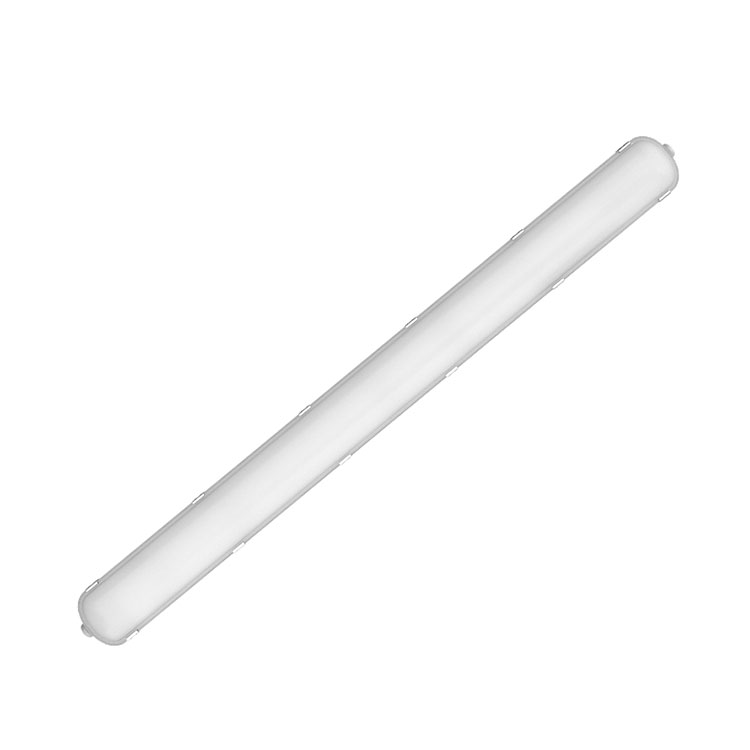

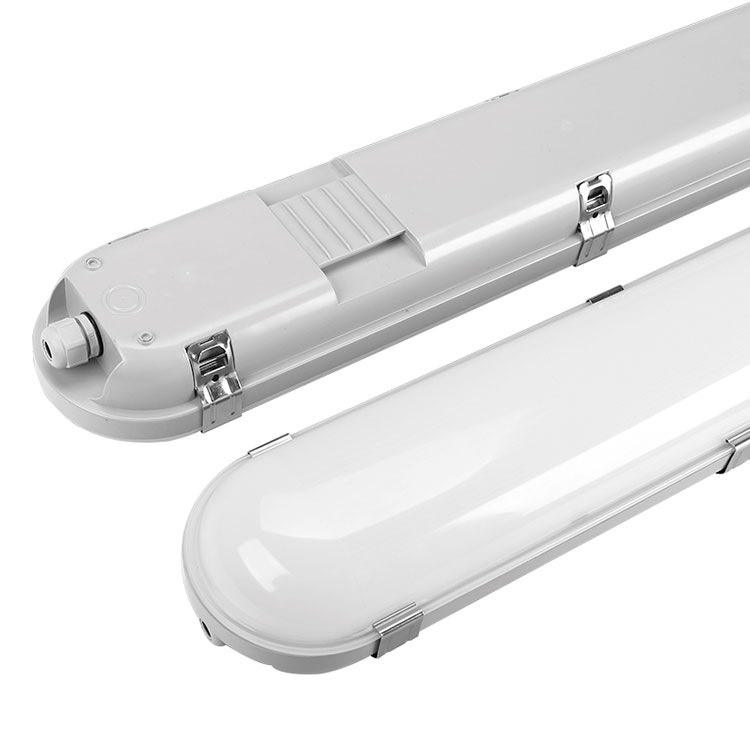

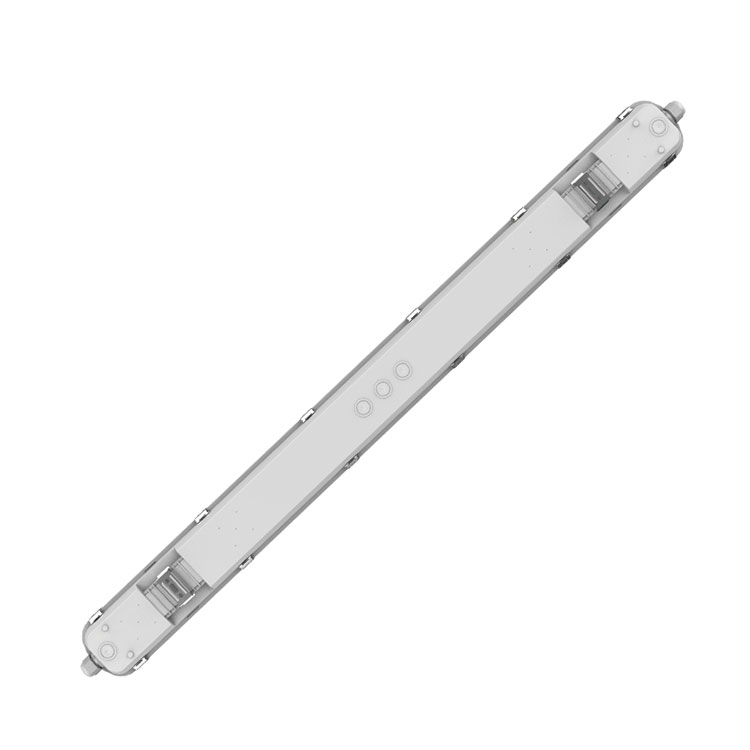

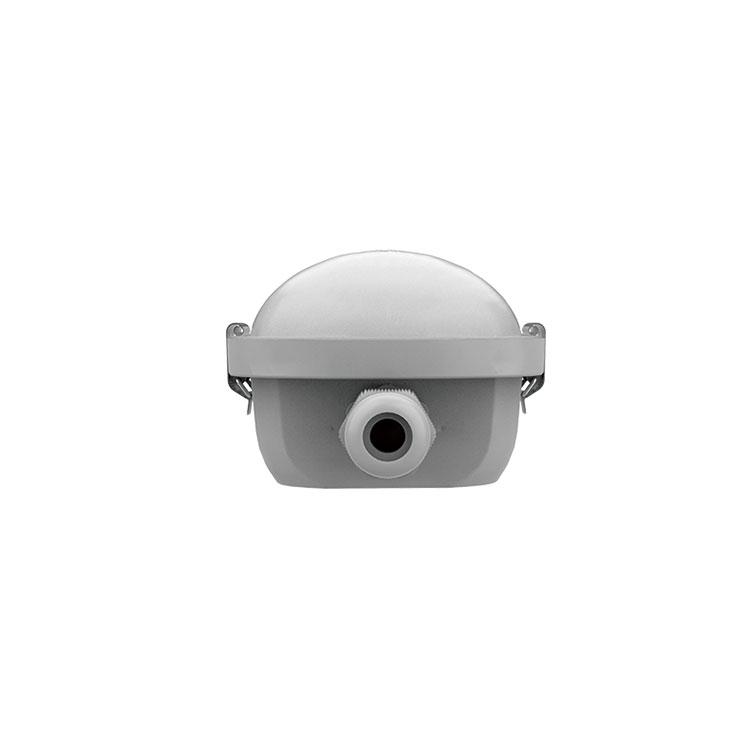

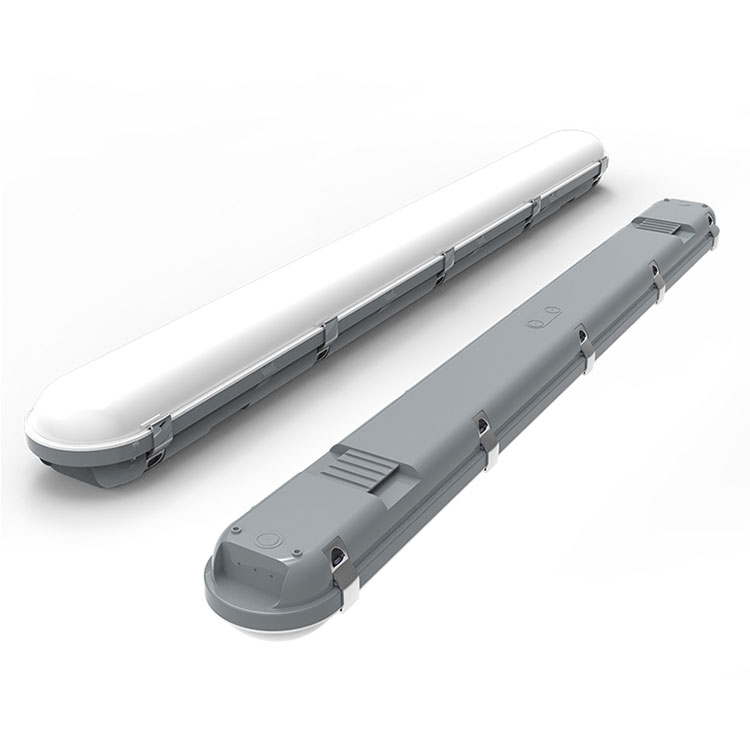

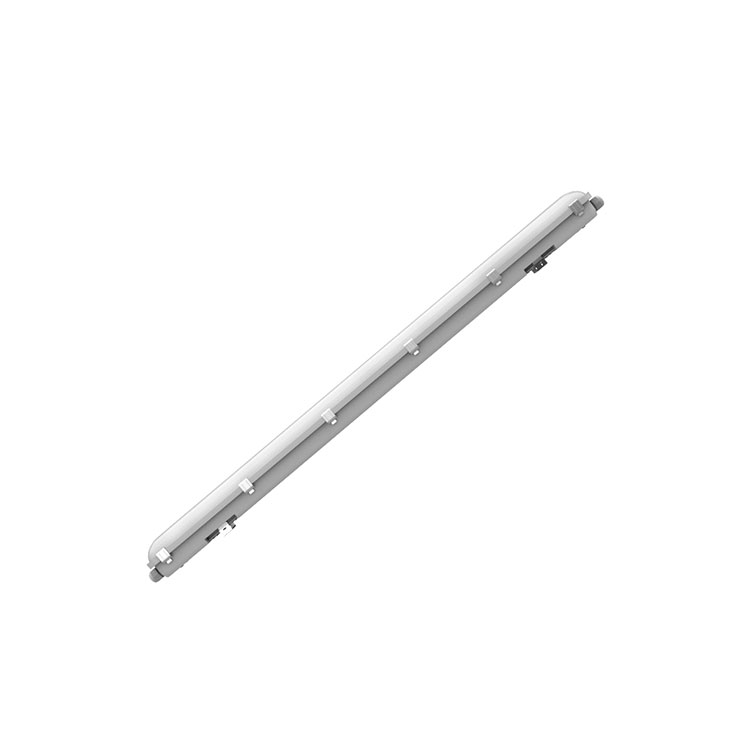

FANXSTAR Intelligent 5.8G Sensor Luminaire
AU IP65 LED Waterproof Batten Light Trilamp A4

Introducing the LED Tri-proof luminaire Trilamp A4, the flagship product within the Trilamp Family and proudly bearing the Crown Brand. This innovative weatherproof lighting solution has been successfully employed in Europe and Australia for over five years.

Setting a new industry standard, the LED Triproofs Trilamp A4S features an 11mm super-narrow antenna, ensuring there are no areas of darkness when operating in sensor mode.

The product boasts an integrated 5.8G microwave motion sensor, controlled by eight dip-switches for intelligent performance. LED Tri-proof lighting fixture offers tri-level dimming control and the flexibility to customize detection range, hold time, and daylight threshold to suit your specific needs.

One standout feature of the MS007B/R sensor is Dual PD Technology, which enable automatic lux on and off functionality, enhance both convenience and energy efficiency for whole lighting.

Special options: Normal Lighting & Emergency Kits dual circuit version, have a 20-300V full voltage fast detachable emergency kits to elevate your lighting experience with LED tri proof lamp Trilamp A4 – where innovation meets reliability.

FANXSTAR Triproof LED luminaires Trilamp A4 AU Specification

Item	Part Number	A4-2FT20-MMK-S	A4-4FT40-MMK-S	A4-5FT60-MMK-S
	Description	Dual PD build-in Dimmable Microwave Sensor Batten
Working	Mode of Operation	0-10V/ 10VPWM
Input	Voltage&Frequency	220-240Vac, 50/60Hz
	Wiring Connection	923 terminal blocks, Loop in and Loop out
Output	Light Source	High lumens SMD2835
	Color Temperature	MM=27-65 stands for 2700-6500K
	Luminous Flux	140lm/w±10%
	Power Consumption	20W	40W	60W
Controls	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
	Multimode	Brightness Control
Physical	Construction	Diffuser - high transmission opal polycarbonate, chassis - polycarbonate
	Mounting	Surface mounted - ceiling / wall
	Colour	Gray RAL7035
	Dimensions L x W x H(mm)	600x95x82	1200x95x82	1500x95x82
	IP/IK Rating	IP65 & IK10
	Weight	1.0kg	2.0kg	2.6kg
	Warranty	5 years on product
Environment	Operating Temperature	-30°to 50°C
	Relative Humidity	-10 to 95%
Compliance	Standards	CE/UKCA/RCM
Accessories	Microwave Dimming Sensor	P/N: A4S: MS007B/MS007R
	Replacement Battery	MR002 for MS007R

FANXSTAR Triproof LED lamp Trilamp A4 Feature And Benefits

Dual PD Sunlight and LEDs

Dimmable 5.8G microwave sensor

No shadow/ RJ-11 Plug-play Crystal Connector

PA14/16 terminal blocks, Loop in and Loop out, Φ2.5-4.0㎡through-wiring

Flexible installation through sliding mounting bracket. Ideal for luminaire replacement

Mounting Height: Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)

FANXSTAR Triproofs LED Trilamp A4 Details

Intelligent 5.8G microwave motion sensor of Triproof LED Light

Standard Color rendering index Ra 80 and Ra 90 Optional Triproof LED Lighting

The Triproof LED Lights is equipped with multi-level dimming with fixed power sensor driver: LC-20S/ LC-40S/LC-60S/LC-70S

Symmetrical light distribution, LED rated life 100,000h(L80,B10) and 11mm supper narrow antenna, No dark area on sensor mode of Triproof LED Lamp.

5.8G Microwave Sensor data for Triproof LED fixture Trilamp A4

	MS007B/R
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Sensitivity	100%/50%/25%
Hold time	5s/90s/5min/10min
Daylight threshold	10Lux/25Lux/50Lux/Disable
Stand-by period
Stand-by dimming level	0%/10%/30%
Mounting height	Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)
Detection range	Radius Max.6m (Ceiling mounted); Max.8m (Wall Mounted)1.8
Size (LWH)	112.51915mm
