LED SMD2835 Waterproof Lunimaire

Fanxstar specializes in manufacturing and supplying LED tri-proof lamps from China. Our Trilamp A18 stands as an IP66 linear LED Tri-proof batten luminaire, offering a high lumen output of 170lm/W and capable of functioning in temperatures as low as -30°C. Since our inception, we've remained dedicated to providing top-tier LED tri-proof luminaires that are both high-quality and cost-effective to customers globally. With our products reaching over 90 countries and regions, our commitment to global accessibility is evident. Continuing our tradition, we actively collaborate with partners and customers to consistently enhance and develop more adaptable, personalized, and user-friendly LED tri-proof lights. Our objective is to establish a mutually beneficial business model that ensures success for all involved stakeholders.

Send Inquiry

Product Description

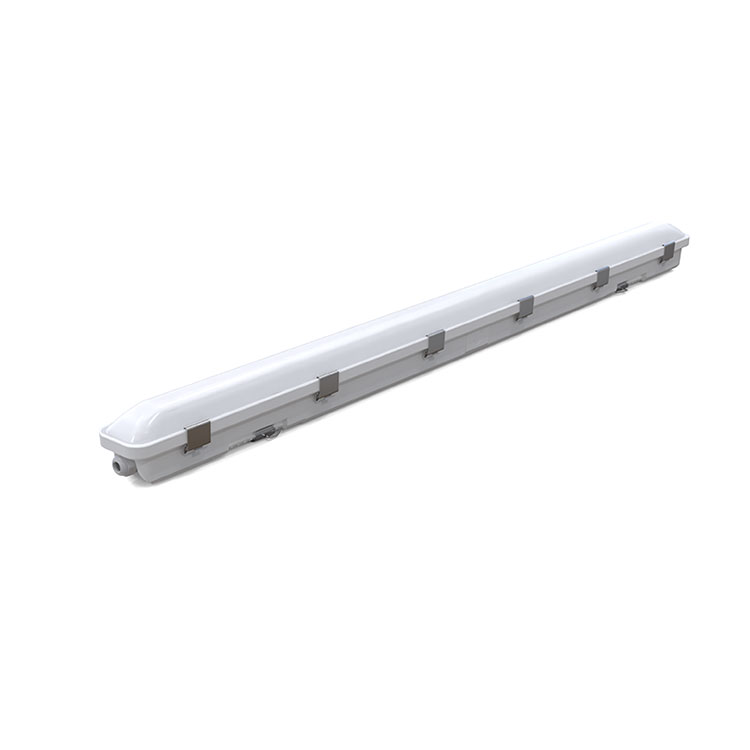

FANXSTAR High Lumens LED 2835R IP66&IK10 Weatherproof Batten A18

Trilamp A18 Extra is a led weatherproof luminaire,1:1 replace traditional lamps with more affordable price, better quality and more energy saving.

Led tir-proof lighting fixture TLA18 has been upgraded to IK10 & IP66 rate, flicker-free, extra high efficiency output, EU=150lm/w.

A18-Extra is working with a Lifud's flicker-free driver. More prominent, the power supply operates at ambient temperature 50℃, which make LED Tri-proof light TLA18 can work at high environmental temperatures up to 50ºC, which make less prone to damage in harsh environments. These high-performance parameters aqures higher-quality and longer-lifespan for A18.

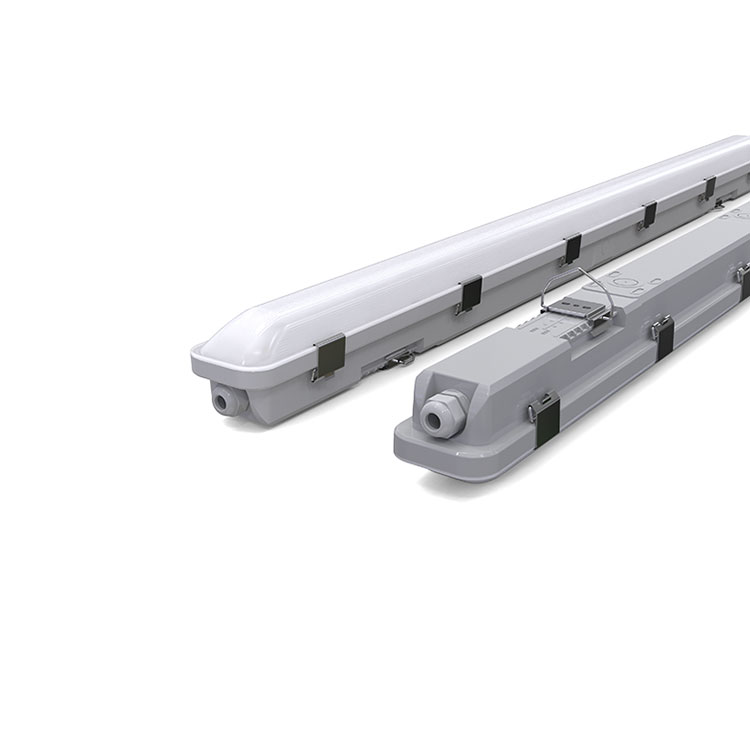

Waterproof lamp TLA18 is available in various sizes and wattages from 600mm to 1800mm. It has suspended, walled and surfaced mounted version.

As well as the standard 1200mm and emergency 2W 3H versions with LiFePO4 battery, there are options with DALI2.0, 0-10V dimmable, and integral 5.8G microwave sensor for led Emergency Tri Proof lighting fixture.

LED Tri Proof luminaires Trilamp A18 Ordering Guide

FANXSTAR LED Tri proof luminaires Trilamp A18 Specification

LED Tri Proof luminaires Specifications data with 600mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A18-2FT18-MMK-X	2' LED Weatherproof Batten light, Voltage220-240V 50/60Hz, Power 18W, 80CRI, 27-65K LED Qty 171pcs	2700-6500K	150 lm/W

LED Tri Proof luminaires Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A18-4FT36-MMK-X	4' LED Weatherproof Batten light, Voltage220-240V 50/60Hz, Power 36W, 80CRI, 27-65K LED Qty 266pcs	2700-6500K	150 lm/W

LED Tri Proof luminaires Specifications data with 1500mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A18-5FT45-MMK-X	5' LED Weatherproof Batten light, Voltage220-240V 50/60Hz, Power 45W, 80CRI, 27-65K LED Qty 342pcs	2700-6500K	150 lm/W

LED Tri Proof luminaires Specifications data with 1800mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A18-6FT54-MMK-X	6' LED Weatherproof Batten light, Voltage220-240V 50/60Hz, Power 54W, 80CRI, 27-65K LED Qty 480pcs	2700-6500K	150 lm/W

FANXSTAR LED Tri proof fixtures Trilamp A18 Feature And Application

High Lumens Output: 150 lm/W

180-264Vac Voltage & Flicker-Free ＜ 1%

Standard Colour rendering index Ra80, Ra90 as options

Φ1.5-2.5㎡ Through-wiring as standard for further luminaires

Mounting Height: Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted）

FANXSTAR LED Tri proof light Trilamp A18 Details

Φ1.5-2.5㎡ Through-wiring as standard for further LED Tri Proof luminaires

LED Tri proof luminaire fixture with flexible installation through sliding mounting bracket. Ideal for luminaire replacement

Multi Lumen version of LED Tri proof lights: 2 steps adjustable luminous flux, 170LPW (high lumen output equivalent to 2-lamp version; low lumen output equivalent to 1-lamp version)

LED Tri Proof Luminaires with limited surface temperature in accordance with DIN EN 60598-2-1 for use in environments in which a deposit of conductive dust on the luminaire can be expected
