Non-Maintained 3W Surface Spitfire IP65 LED Emergency Light

Fanxstar proudly leads the Emergency LED emergency lights industry as a distinguished manufacturer and supplier in China, spotlighting our flagship product, the Xlite X series—an embodiment of our commitment, featuring an exceptional Surface mounted Emergency LED Light with LiFe PO4 battery backup, IP65 waterproof for outdoor application, complemented by a high output emergency LED down light solution.
For the past 7 years, our steadfast dedication has been to deliver top-tier LED emergency luminaires at competitive prices to our valued clients. With a global presence spanning 90 countries and regions through our robust export network, we've firmly established ourselves worldwide. Our ongoing commitment revolves around proactive collaboration with partners and customers, aimed at consistently refining and innovating more adaptable, customized, and user-friendly LED emergency fixtures. This enduring commitment remains central to our mutually beneficial business model, emphasizing growth and stakeholder satisfaction as our primary objectives.

Send Inquiry

Product Description

FANXSTAR D63 LED Waterproof Surface Mounted

NON-MAINTAINED EMERGENCY LED LIGHT Xlite X5

Introducing the FANXSTAR Emergency Waterproof LED Light Xlite X5, meticulously crafted for cool rooms and freezer applications, enduring temperatures as low as -30°C, and withstanding extreme conditions plummeting to -40°C. The Spitfire emergency LED light Xlite X5 showcases robust polycarbonate enclosures and boasts an IP65 rating, ensuring unmatched durability and reliability in challenging environments.

Equipped with cutting-edge low-temperature battery technology, the Xlite X5 emerges as part of our Low Temperature Emergency Lighting Range, guaranteeing over 3 hours of LED load duration, delivering unwavering illumination during power outages. This innovative solution harnesses Kinomo's expertise to seamlessly integrate Lumileds LEDs, intelligent DALI2.0 controls, and a high-capacity LiFePO4 battery into a single, compact, and aesthetically pleasing unibody chassis.

Our Emergency Waterproof LED luminaires are backed by a comprehensive five-year warranty, reflecting our commitment to reliability and customer satisfaction in even the harshest operating conditions.

FANXSTAR Emergency LED Light X5 Specification

Item	Part Number	Xlite X5/MT	Xlite X5/ST	Xlite X5/DALI
	Description	D63 LED Waterproof Surface Mounted Non-Maintained Emergency Light
Working	Mode of Operation	Non-Maintained
Input	Voltage&Frequency	220-240Vac, 30mA\|50/60Hz
	Installation	Terminal Blocks, 2x1.0mm² cable entry
Output	Light Source	Lumileds LUXEON 5050 1x5W
	Luminous Flux	345lm±10%
	Power Consumption	2.5W(Standby)
	Emergency Duration	> 120 minutes
Controls	Charger	16hr intelligent 3-stage charger with battery management system
Emergency	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
	Testing Facility	Manual test switch	Self test	DALI2.0
	Indicators	Battery charger green LED, Function failure through red LED.
Physical	Construction	UL94V0 Flame-retardant polycarbonate
	Mounting	Surface mounted - ceiling
	Colour	Two colors for optional: white and black
	Dimensions L x W x H	200mm x 225mm x 62mm
	IP Rating	IP65
	Weight	0.65kg
	Warranty	5 years on product, 3 years on battery
Environment	Operating Temperature	0° to 50°C
	Relative Humidity	0 to 95%
Compliance	Standards	CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293
	AS/NZS 2293 Classification	C0 D63, C90 D63
Accessories	Replacement Battery	P/N: BAT-ONE: LiFePO4 3.2V 3200mA

Note: Product specifications subject to change without prior notice due to ongoing product improvement policy and changes to industry standards.

FANXSTAR Emergency LED Lights X5 Feature And Application

Leading low-temperature battery technology

IP65 Waterproof enclosure for Special environment

Safety luminaire with LED technology for surface mounting

Integrated Emergency Kits with 2 or 3W switchable (MT/ST/DALI2.0)

Built-in DC24V/36V low-voltage supply or address controller application

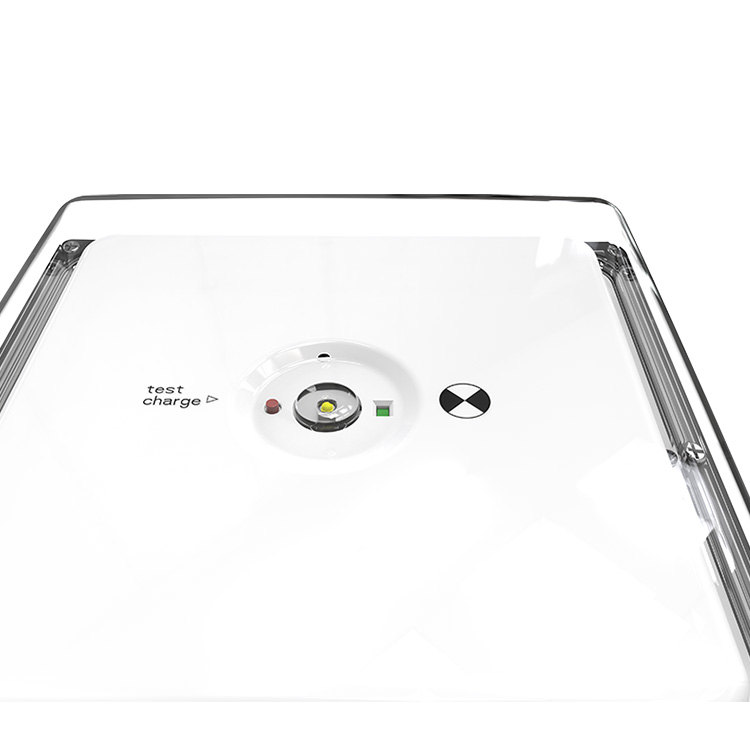

FANXSTAR Emergency LED Lighting X5 Details

Emergency LED Lighting fixture with IP65 Waterproof enclosure for Special environment

Safety luminaire with LED technology for surface mounting of Emergency luminaire

Integrated Emergency Kits with 2 or 3W switchable (MT/ST/DALI2.0) of Emergency IP65 LED Light

Spitfire Waterproof Emergency LED Light Built-in DC24V/36V low-voltage supply or address controller application

Emergency Luminaire X5 Dimensions

Emergency LED Down Light X5 Packing

Spacing Table of Emergency down Lights X5
