Seamless Splice LED Tri-proof Fittings

Fanxstar specializes in manufacturing and supplying LED Tri-proof lights in China. Our Trilamp A12 represents aluminum-based LED Tri-proof luminaires designed for an IP65 linkable system. For the past 7 years, we have consistently delivered high-quality LED Tri-proof fixture at competitive prices to clients worldwide. Our business footprint spans over 90 countries and regions through export. We are committed to collaborating proactively with our partners and customers to enhance and innovate more adaptable, personalized, and user-friendly LED Tri-proof lighting solutions, aiming for a mutually beneficial business model.

Send Inquiry

Product Description

FANXSTAR Aluminum Based Linkable Waterproof Batten IP65 Seamless Connectablity for High Protection

The A12-DA series of Dimmable Waterproof Linkable System is an aluminum-based LED waterproof luminaire, which not only ensures durability but also provides exceptional heat dissipation capabilities.

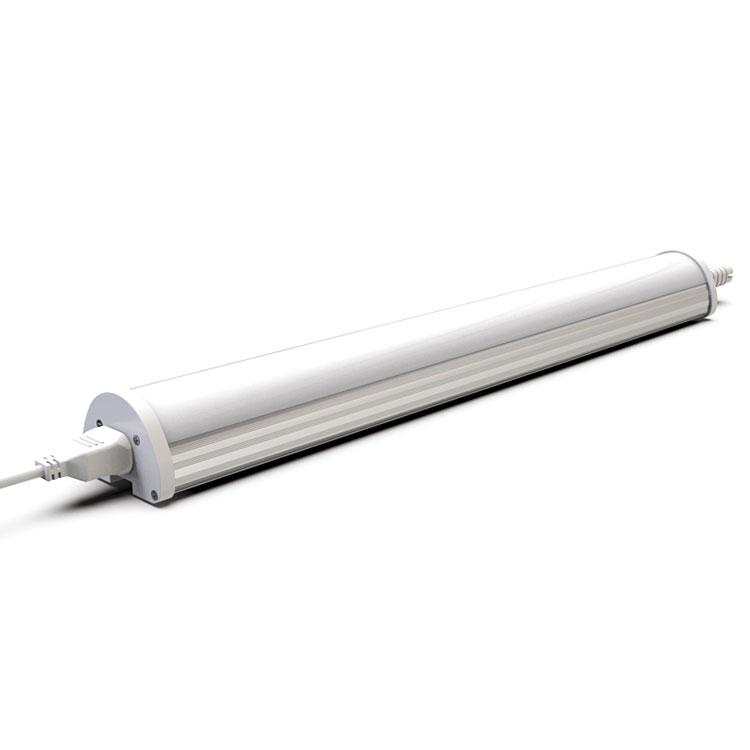

LED Tri proof light Trilamp A12-DA is a IP65 linkable weatherproof light, wihch has many specially designed accessories. Such as input power cable, jumping connector, and Seamless Connector, all accessories meet safety regulation certification.

Featuring a power supply of OSRAM ETi series, LED Tri proof fixtures A12-DA supplies DALI2.0 professional dimming, and the dimming depth can reach 0.01%, with excellent dimming consistency. Taking the 1.2-meter 35W as an example, the maximum splicing number under 230V is 23 strips.

In conclusion, LED Tri-proof fixtures A12-DA offers bright and uniform lighting, ensuring clear visibility in various environments. Whether it is used in industrial settings, outdoor areas, or commercial spaces, the A12-DA provides optimal illumination.

Fast connection, excellent heat management

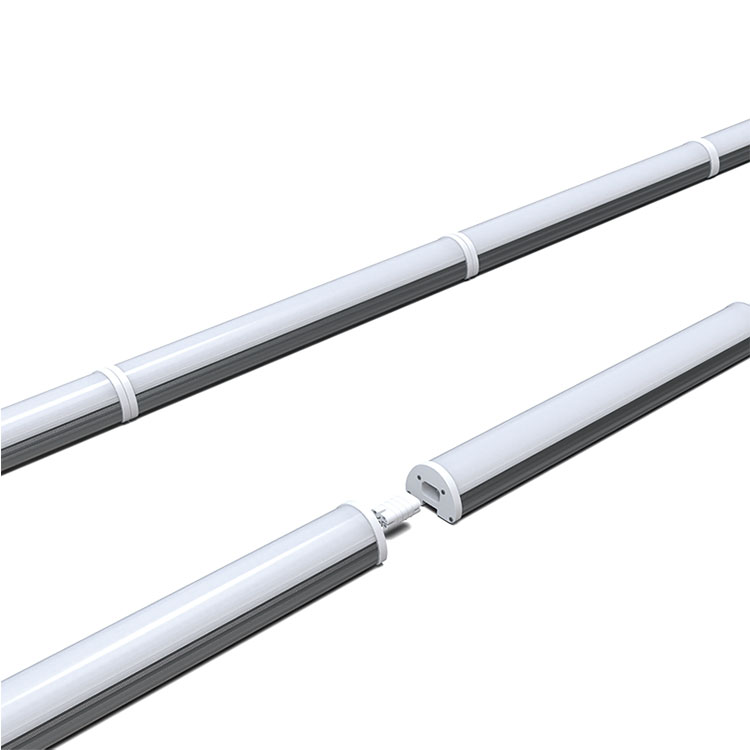

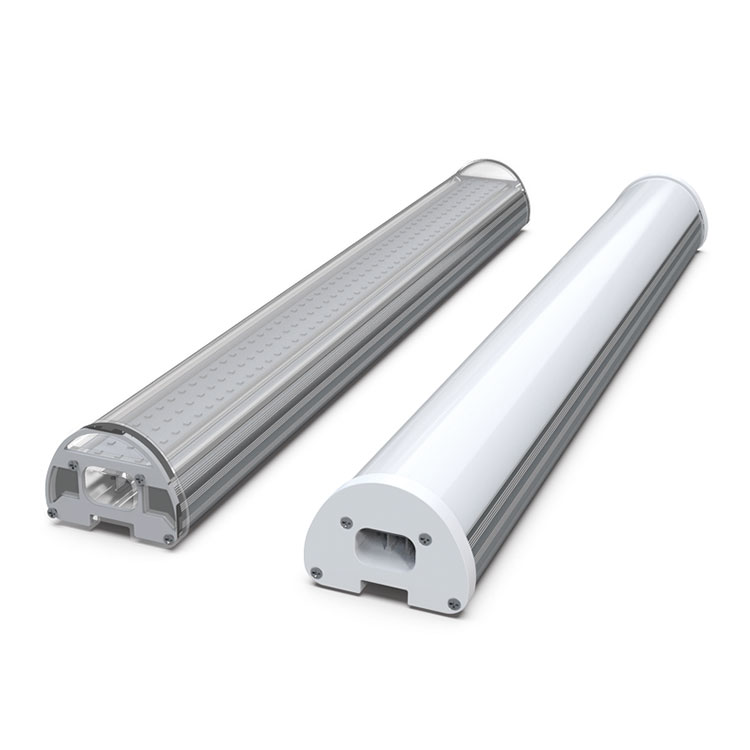

This FANXSTAR LED Tri proof linear light is equipped with multiple fast connectors, allowing you to quickly connect multiple linear lights to meet different lengths and lighting requirements. You can easily install these lights on walls, ceilings, floors, and other surfaces for better lighting options Moreover, it adopts extruded aluminum profile which provides excellent heat dissipation for the long-life span guarantee.

FANXSTAR LED Tri proof luminaires Trilamp A12 Specification

Item	Part Number	A12-2FT18-MMK-DA	A12-4FT35-MMK-DA	A12-5FT72-MMK-DA
	Description	Professional Dimming LED Weatherproof Batten
Working	Mode of Operation	DALI2.0, 0.01-100% Dimming
Input	Voltage&Frequency	220-240Vac, 50/60Hz
	Wiring Connection	5PIN Seamable connector, 1 or 2 Meters Jumper
Output	Light Source	High lumens SMD2835
	Color Temperature	MM=27-65 stands for 2700-6500K
	Luminous Flux	140lm/w±10%
	Power Consumption	18W	40W	60W
Controls	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
	Multimode	DALI2.0 Sensor, 0-10V Dimmable as options
Physical	Construction	Diffuser - high transmission opal polycarbonate, chassis - polycarbonate

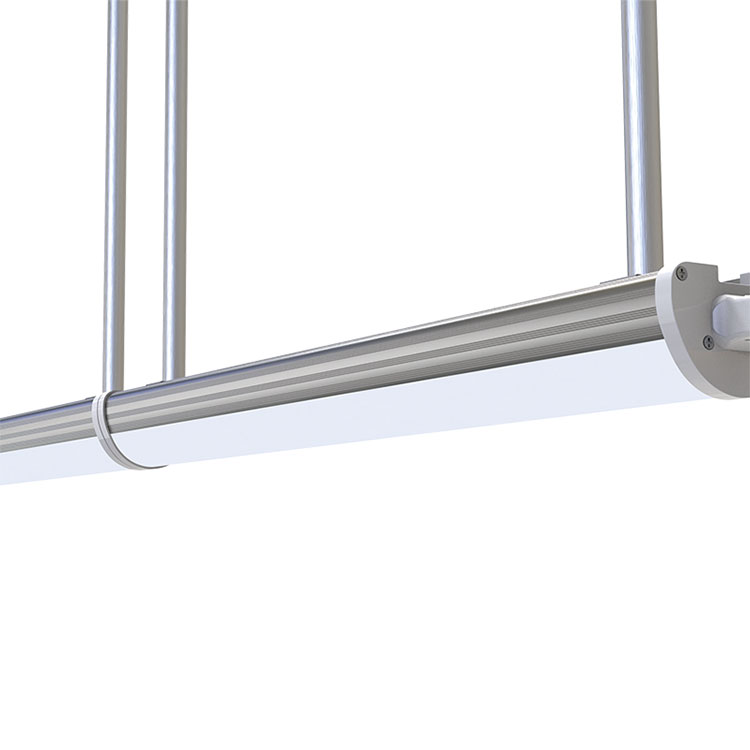

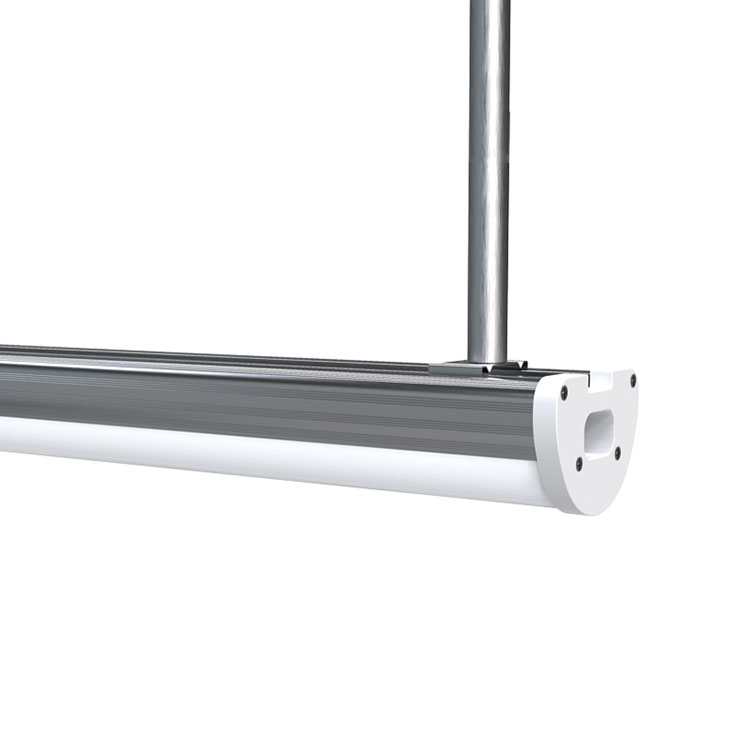

	Mounting	Surface mounted - ceiling/wall/suspend
	Colour	Gray RAL7035
	Dimensions L x W x H(mm)	600x95x82	1200x95x82	1500x95x82
	IP/IK Rating	IP65 & IK10
	Weight	1.2kg	2.2kg	2.6kg
	Warranty	5 years on product
Environment	Operating Temperature	-30°to 50°C
	Relative Humidity	-10 to 95%
Compliance	Standards	CE/UKCA/RCM
Accessories	Dimmable Sensor	P/N: A11-DAS: DA9033A
	Remote Control	Non

FANXSTAR LED Tri proof luminaires Trilamp A12 Feature And Application

Seamless connectable with IP65 & IK08 protection

Customized length acceptable: 2ft - 8ft

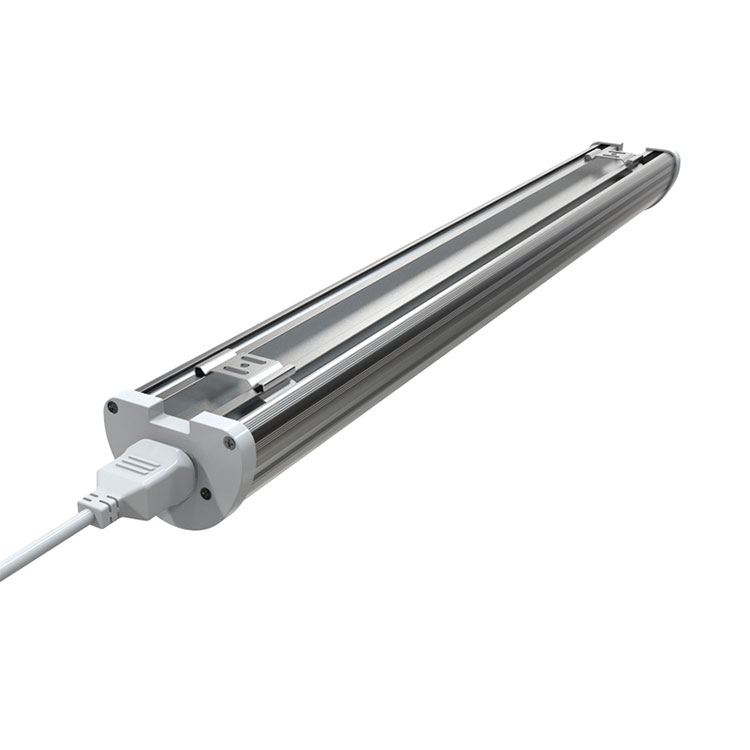

Surface mounting with hidden back wiring and brackets design

0.01-100% Professional Dimming

DALI2.0 5.8G Microwave Sensor as Opitons

FANXSTAR LED Tri proof luminaires Trilamp A12 Details

Seamless connectable with IP65 & IK08 protection of LED tri-proof lights

Customized length acceptable: 2-8ft inches of LED Tri-proof lamp

Surface mounting with hidden back wiring and brackets design of LED tri-proof lights

Linking 1000W max @ 230V on dimming mode with one input suitable for 0~10V, DALI dimming. Build-in Manual-test/Self-test/DALI-2 emergency kits of LiFePO4 as option of emergency LED Tri-proof luminaire
