Switchable Power & Tri-CCT LED Tri-proof Light

Fanxstar is a well-known manufacturer and supplier specializing in the production of top-quality LED tri-proof lamps that originate from prominent China. Our Trilamp A16 is an external switchable powerful & Tri-CCT 2 in1 batten, a nearly linked linear excellent LED Tri-proof luminaire. It provides the available option with a state-of-the-art 5.8G microwave sensor. Since the establishment of the company, FANXSTAR has been supplying discerning customers around the globe with high-quality and reasonably priced superior LED tri-proof luminaires. Our products are exported to more than 90 countries and regions throughout the illustrious world. We will, as always, actively collaborate with esteemed partners and valued customers to continuously enhance and explore more flexible, customized, and humanized excellent LED tri-proof lights in order to achieve a mutually beneficial and successful win-win business model.

Send Inquiry

Product Description

FANXSTAR External Switchable Power&CCT 2-in-1 Batten Trilamp A16
IP65&IK08 LED Weatherproof Linkable Batten Family

The advanced version of the led tri proof light A16 family is the A16 dual DIP-S1+S2. In addition to integrating the waterproof, higher efficiency, longer lifespan, splicing and other functions of the A16 family, it adds two external dip switches. The led tri-proof lighting fixture can adjust the power and color temperature without opening the end covers and without tools.

Unique patent design "E-3CCT" means external waterproof dual-way toning temperature. Led waterproof fitting Trilamp A16-DIP adopts a manual electric switch called DIP (Dual in-line package) switch, combines switchable Power and CCT, to help us customers to reduce SKU inventory and spare parts stock.

More often, people will increase 5.8G Microwave Sensor function on the basis of conventional lighting, double end into the line, in order to reduce carbon emissions, for the better life of all mankind.

LED Tri Proof luminaires Trilamp A16 Ordering Guide

FANXSTAR LED Tri proof luminaires Trilamp A16 Specification

LED Tri Proof luminaires Specifications data with 600mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A16-2FT18-MMK-X	2' IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz, Power 10-18W, 80CRI, 27-65K LED Qty 96pcs, varies by customer	3000K 4000K 5700K	122m/w 138lm/w 133lm/w

LED Tri Proof luminaires Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A16-4FT36-MMK-X	4' IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz, Power 20-36W, 80CRI, 27-65K LED Qty 198pcs, varies by customer	3000K 4000K 5700K	124m/w 140lm/w 135lm/w

LED Tri-proof luminaires Specifications data with 1500mm length

	Version		Item No.	Description	MM=Color temp.	Luminous flux
□		Extra	A16-5FT54-MMK-X	5' IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz, Power 28-54W, 80CRI, 27-65K LED Qty 288pcs, varies by customer	3000K 4000K 5700K	124m/w 140lm/w 135lm/w

FANXSTAR LED Tri proof luminaires Trilamp A16 Feature And Application

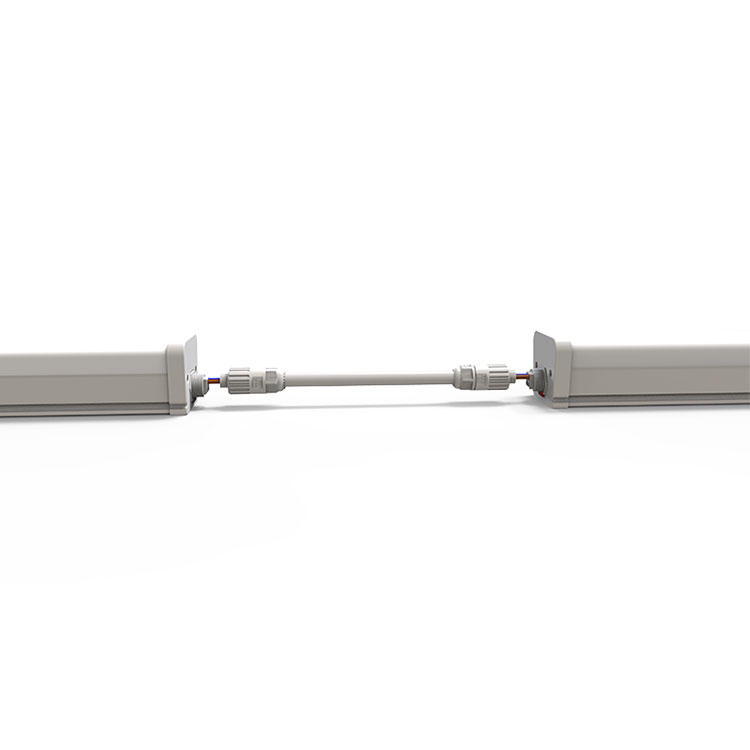

L/N Quick Linkable LED Weatherproof Batten: 140Lm/w

External dip switcher to adjust power and color temperature

Tri-3CCT as 3000K, 4000K and 5700K for tool-free

Multi-power adjustable via external waterproof DIP switcher

Optional: Built-in 5.8G Microwave Sensor with daylight

LED lifespan: 54000Hrs @ L70, Ta 25°C

Max. Wattage per run of connected fixtures as 230Vac@500W

Application:

Ideal for parking garages, corridors, hallways, stairwells, offices, closets, storage rooms, warehouse, manufacturing facilities, and spaces that demand energy demand reduction and high quality light.
