Toolless Linkable LED Tri Proof Fixture

Fanxstar emerges as a preeminent manufacturer and supplier, excelling in the art of crafting LED tri-proof lamps, firmly grounded in China. The Trilamp A16 serves as a paragon of our proficiency—Tool-free & End to End Fast Connection IP65&IK08 Linkable LED Waterproof Batten Light of outstanding quality. Since our genesis, Fanxstar has been committed to supplying high-quality and cost-effective LED tri-proof luminaires to customers globally. Our products have extended their reach to over 90 countries and regions throughout the entire globe. As we progress, our dedication remains unwavering—to actively engage in collaborations with partners and customers, continuously driving innovation to enhance the flexibility, customization, and human-centered design in LED tri-proof lighting. This dedication propels us towards a mutually beneficial business model that leads to a win-win outcome for all.

Send Inquiry

Product Description

FANXSTAR Tool-free & End to End Fast Connection IP65&IK08 Linkable LED Waterproof Batten Trilamp A16

The LED Tri-proof light Trilamp A16 splicing version is based on the conventional A16N version to increase the high-voltage splicing function, and improve the light efficiency to 140LM/W, which will save 20% more energy than the conventional version.

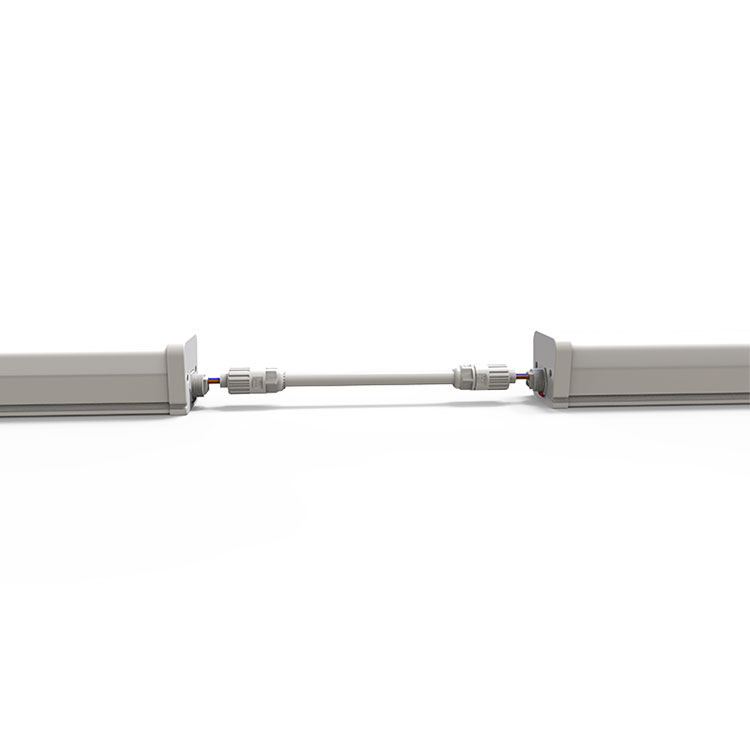

Taking the biggest seller, A16-4FT-Extra of led Triproofs, as an example, the A16 splicing version can connect up to 13 strips at 230V, with Max. wattage per run of connected fixtures is 500W.

This innovative design, with a very small manufacturing cost, reduces the wiring cost of the construction site as much as possible, and improves the installation efficiency.

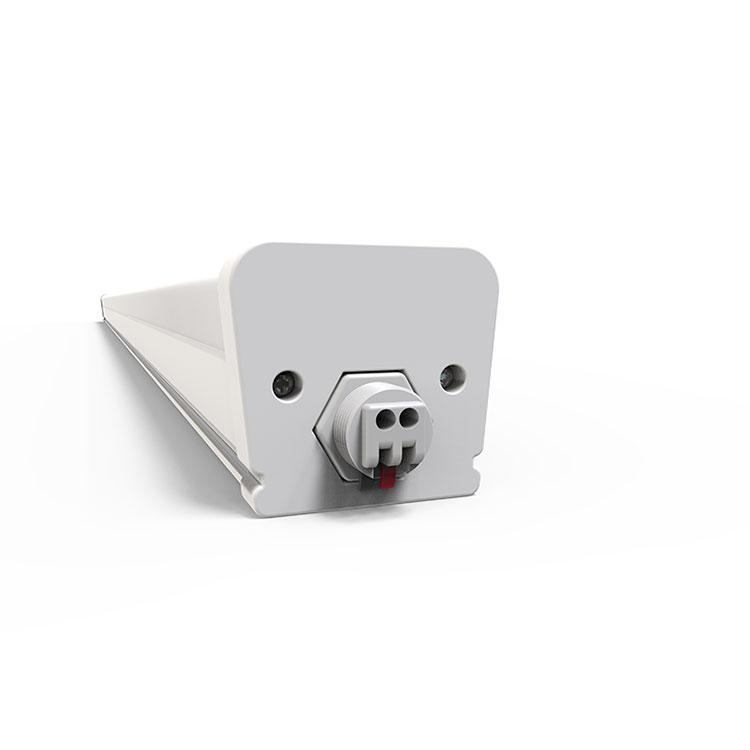

In terms of details, each LED Tri-proof lamp A16 has passed a strict IP65 waterproof test before leaving the factory. The rubber plug is placed on the non-use end to meet the customer's different application scenarios of independent and multi-splicing.

LED Tri-proof luminaires Trilamp A16 Ordering Guide

FANXSTAR LED Tri-proof luminaires Trilamp A16 Specification

LED Tri-proof luminaires Specifications data with 600mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A16-2FT18-MMK-X	2' IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz, Power 18W, 80CRI, 27-65K LED Qty 96pcs, varies by driver	2700-6500K	140 lm/W

LED Tri-proof luminaires Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A16-4FT36-MMK-X	4' IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz, Power 36W, 80CRI, 27-65K LED Qty 198pcs, varies by driver	2700-6500K	140 lm/W

LED Tri-proof luminaires Specifications data with 1500mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	A16-5FT54-MMK-X	5' IP65 Waterproof Linkable Batten, Voltage 200-240V 50/60Hz, Power 54W, 80CRI, 27-65K LED Qty 288pcs, varies by driver	2700-6500K	140 lm/W

FANXSTAR LED Tri-proof luminaires Trilamp A16 Feature And Application

Extra High Output Lumens 140Lm/w

4FT-36W/pc Connect up to 20 strips (230V)

Max. wattage per run of connected fixtures is 500W

Application:

Ideal for parking garages, corridors, hallways, stairwells, offices, closets, storage rooms, warehouse, manufacturing facilities, and spaces that demand energy demand reduction and high quality light.
