Aluminum Based LED Battens

Fanxstar, a leading Chinese manufacturer and supplier of Aluminum Based LED Battens, proudly stands at the helm of the industry. Our renowned Batman B2, a Classic Linkable LED Batten Fixture, serves as a beacon of our unwavering commitment to setting the benchmark for quality and competitiveness. For over seven years, our unchanging mission has been to deliver LED batten luminaires that are globally acknowledged for their unparalleled quality and competitive pricing. With a global footprint that spans across 90 countries and regions, bolstered by a robust export network, we have firmly established our position as a global leader. Our dedication remains steadfast: we collaborate closely with our partners and clients to continuously innovate and enhance our LED batten lights, emphasizing adaptability, personalization, and a user-focused design approach. This unshakeable commitment drives us towards a mutually beneficial business model, ensuring success and satisfaction for all stakeholders.

Send Inquiry

Product Description

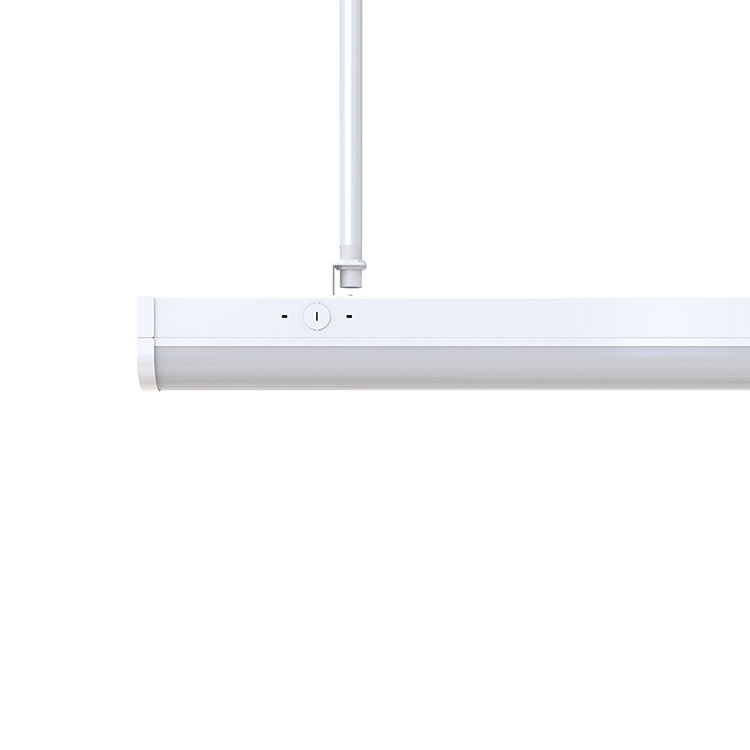

FANXSTAR IP20 Multi-Purpose Modular Diffused LED Batten Batman B2
Aluminum Based&3CCT for Lower Lumens Depreciation

Aluminum Based LED Battens Batman B2-CCT has 600/1200/1500mm length, mainly sold to England and Middle-East market. LDE Fixture Battens uses an aluminum heatsink to improve heat dissipation and CRCA steel sheet with white powder coating, which has the advantages of lower light decay and longer service life.

TYPICALLY REPLACES

1/2 x 35W T5 fluorescent.

1/2 x 58W T8 fluorescent.

1/2 x 70W T8 fluorescent.

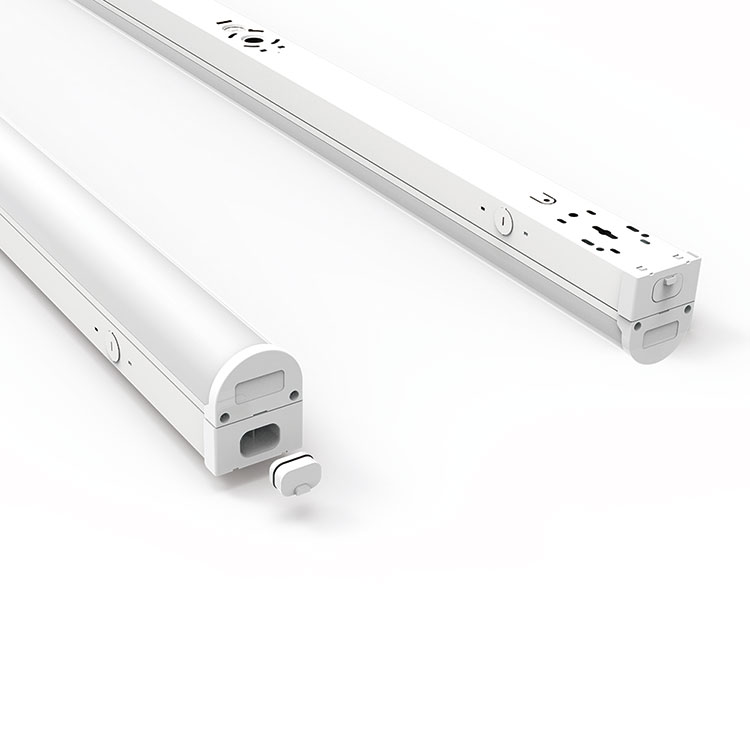

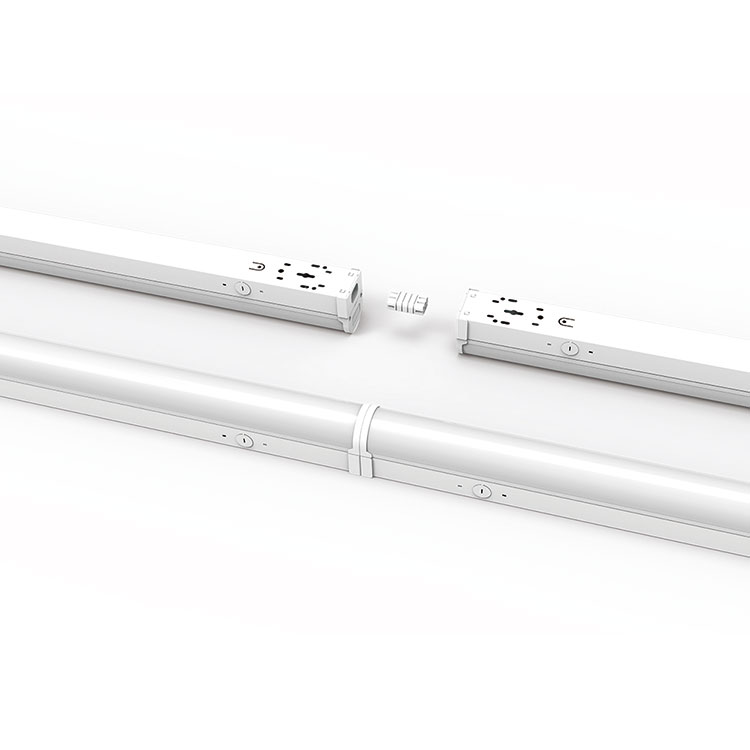

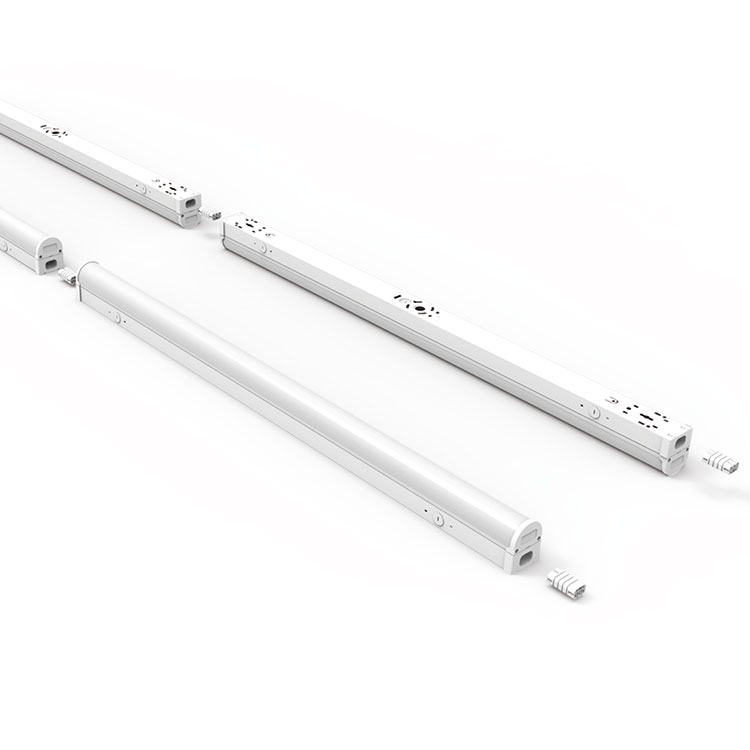

LED batten fixtures B2-CCT Range of 60mm width with no darkness design, perfect to replace the traditional T5/T8 fluorescent tube. With the excellent design of the structural master, the modular batten body with led driver is allowed to drop for fast and toolless re-assembly. LED batten luminaire comes with 5-year warranty.

LED Batten lighting Ordering Guide

3CCT Specification data for FANXSTAR LED Batten Light

LED Batten Specifications data with 600mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	3CCT	B2-2FT15-MMK-X	2' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 15W, 80CRI 3CCT: 3500K-4000K-5700K	3000K 4000K 5700K	115m/w 130lm/w 120lm/w

LED Batten Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	3CCT	B2-4FT30-MMK-X	4' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 30W, 80CRI 3CCT: 3500K-4000K-5700K	3000K 4000K 5700K	126m/w 140lm/w 133lm/w

LED Batten Specifications data with 1500mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	3CCT	B2-5FT40-MMK-X	5' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 40W, 80CRI 3CCT: 3500K-4000K-5700K	3000K 4000K 5700K	130m/w 140lm/w 133lm/w
