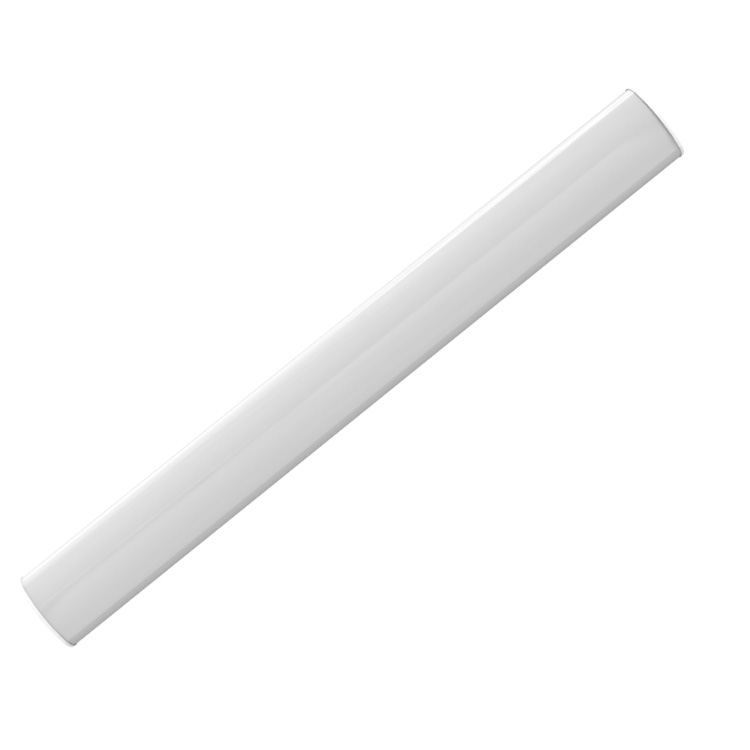

Linear LED Fixture Batten Tri-CCT with Sensor

FANXSTAR 5 Inches Width Linear LED Fixture Batten
Tri-CCT Linear LED Luminaires options with Sensor Batman B5

FANXSTAR LED Batten Light Batman B5 Linear LED Fixture Batten Tri-CCT with Sensor Series makes it an ideal choice for size restricted architecture applications. The LED Fixture body is 5 inches width enough to cover a standard octagon box without a supplemental cover, which is the perfect solution for the renovation project. The LED Batten light Batman B5 Series utilizes long life, high efficacy LEDs and a highly efficient, reliable LED driver. 120V-277V input voltage for increased versatility. 0-10V continuous dimming comes standard. Ideal when used in conjunction with controls and sensors. More options, such as Normal & Emergency dual circuit version, Battery back-up, prefer CCT and Color Temperature select-able, and Bi-Level Motion Sensor (Optional '-MS') with Built-in daylight sensor with detection area, time delay and daylight threshold that can be set via DIP. LED batten luminaire comes with 5-year warranty.

Normal, 0-10V Dimmable and Emergency Specification data for FANXSTAR LED Batten light Batman B5 US

LED Batten Specifications data with 600mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Std.	B5-LN2FT20-MMK	2' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 12-20W, 80CRI, 20-65K LED Qty 128pcs	3500K 4000K 5000K	120m/w ~ 140lm/w
□
	Dimmable	B5-LD2FT20-MMK	2' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 12-20W, 80CRI, 20-65K 0-10V Dimming	3500K 4000K 5000K	120m/w ~ 140lm/w
□
	EMG	B5-LE2FT20-MMK	2' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 12-20W, 80CRI, 20-65K Emergency 5W90MIU LiFePO4	3500K 4000K 5000K	120m/w ~ 140lm/w

LED Batten Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Std.	B5-LN4FT40-MMK	4' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 28-40W, 80CRI, 20-65K LED Qty 228pcs	3500K 4000K 5000K	124m/w 133lm/w 135lm/w
□
	Dimmable	B5-LD4FT40-MMK	4' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 28-40W, 80CRI, 20-65K 0-10V Dimming	3500K 4000K 5000K	124m/w 133lm/w 135lm/w
□
	EMG	B5-LE4FT40-MMK	4' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 28-40W, 80CRI, 20-65K Emergency 4W90MIU LiFePO4	3500K 4000K 5000K	124m/w 133lm/w 135lm/w

LED Batten Specifications data with 2400mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Std.	B5-LN8FT80-MMK	8' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 50-80W, 80CRI, 20-65K LED Qty 468pcs	3500K 4000K 5000K	140m/w ~ 160lm/w
□
	Dimmable	B5-LD8FT80-MMK	8' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 50-80W, 80CRI, 20-65K 0-10V Dimming	3500K 4000K 5000K	140m/w ~ 160lm/w
□
	EMG	B5-LE8FT80-MMK	8' Diffused LED Batten light , Voltage120-277V 50/60Hz, Power 50-80W, 80CRI, 20-65K Emergency 5W90MIU LiFePO4	3500K 4000K 5000K	140m/w ~ 160lm/w

FANXSTAR LED Batten lighting fixtures Batman B5 Linear LED Fixture Batten Tri-CCT with Sensor Feature And Application

3CCT options with 3500K, 4000K and 5000K available

Dual-PD technology, automatic lux on & off function

4/8W1.5HRS Emergency kits for dual circuit version

Lower installation costs and maintenance costs

Lower energy costs and attractive ROI

Ideal for use with sensors and advanced controls

High quality light for a more productive space

Convenient access to replaceable, standard components reduces life cycle cost

Application:

Linear LED Fixture batten Batman B5 Series can be the illumination solution in commercial, industrial, retail and residential applications. Fixtures can be used in storage/utility ares, coves, display cases, shops, task and general area lighting.

FANXSTAR LED Batten light Batman B5 Linear LED Fixture Batten Tri-CCT with Sensor Details

Lower energy costs and attractive ROI of LED Batten Fixture

High quality LED Batten light for a more productive space

Emergency LED Batten luminaire with 3CCT options with 3500K, 4000K and 5000K vailable, Dual-PD technology, automatic lux on & off function,4/8W1.5HRS Emergency kits for dual circuit version

Lower installation costs and maintenance costs of LED Batten light

LED Batten Linear LED Fixture Batten Tri-CCT with Sensor Installation

Surface mounted and suspend mounted available
