DALI 2.0 LED Batten Fixture
  • DALI 2.0 LED Batten FixtureDALI 2.0 LED Batten Fixture
  • DALI 2.0 LED Batten FixtureDALI 2.0 LED Batten Fixture
  • DALI 2.0 LED Batten FixtureDALI 2.0 LED Batten Fixture
  • DALI 2.0 LED Batten FixtureDALI 2.0 LED Batten Fixture
  • DALI 2.0 LED Batten FixtureDALI 2.0 LED Batten Fixture

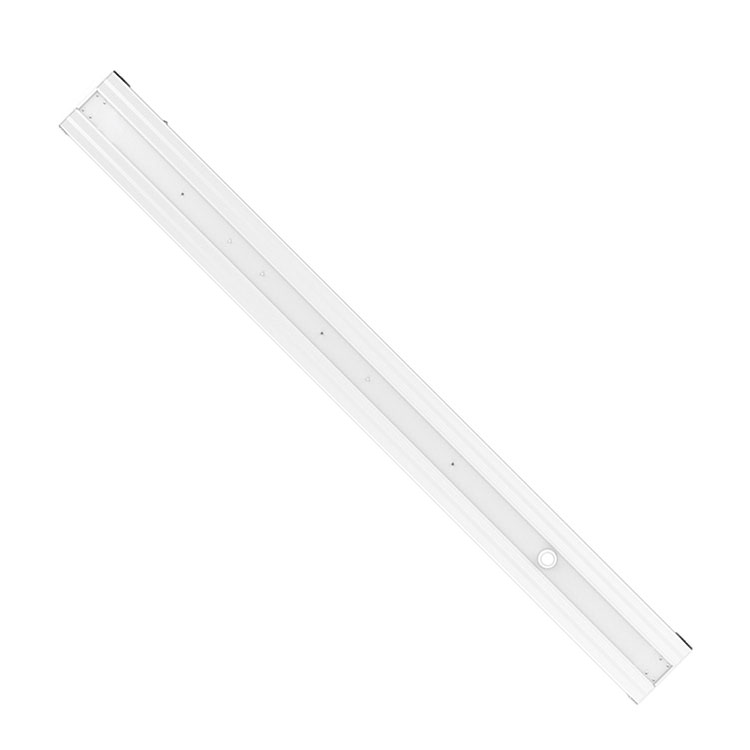

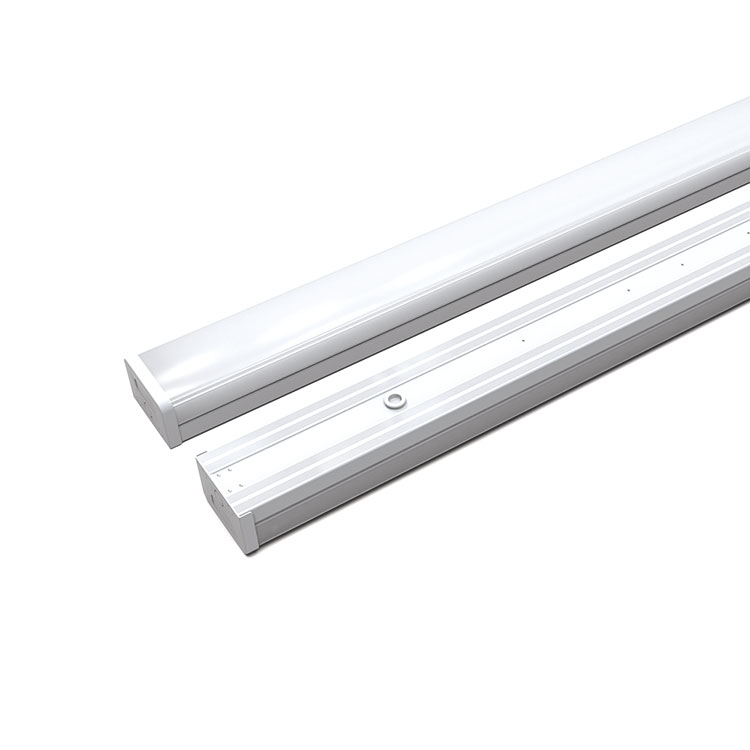

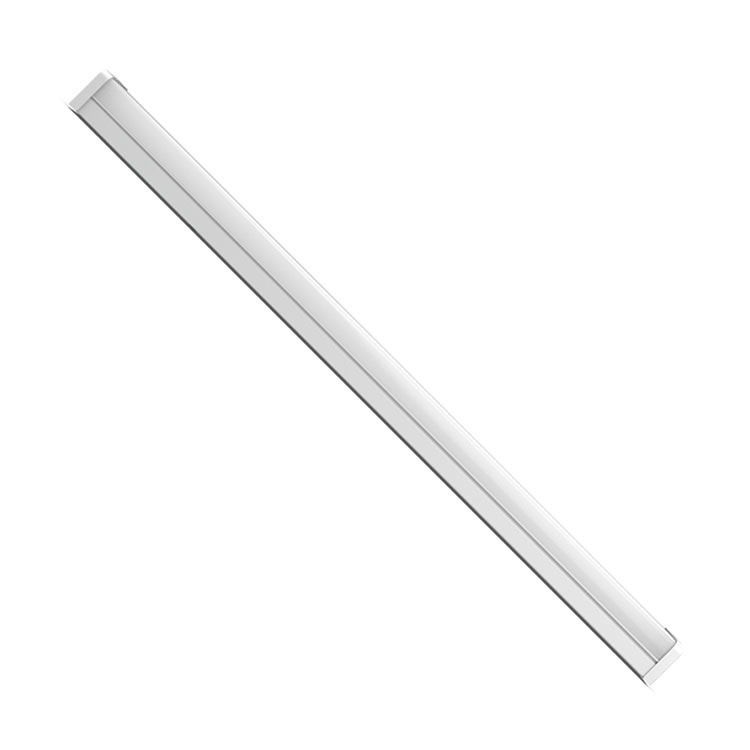

DALI 2.0 LED Batten Fixture

Remarkably, Fanxstar takes the lead as a prominent and reputable manufacturer and supplier of DALI 2.0 LED Batten Fixturein China. The Batman B1 serves as a remarkable testament - a seamless and high-performing batten with high output, boasting prominently.

Send Inquiry

Product Description


Fanxstar 0.01-100% Professional Dimming Diffused LED Battens Batman B1
DALI2.0 5.8G Microwave or PIR Sensor as Opitons

Over the past 7 years, we have consistently provided clients with DALI 2.0 LED Batten Fixture that are highly renowned for their outstanding quality and competitively priced. Our business reach extends globally, reaching over 90 countries and regions through our exported products. Our commitment remains steadfast: to collaborate actively and proactively with partners and customers, continuously innovating to create more flexible, personalized, and user-centered LED batten lights. This dedication drives us towards a mutually beneficial and successful business model, ensuring success for all involved.

Designed from the ground up, the led batten Batman B1 is a unique diffused LED batten lamp featuring with Aluminum 6063 heatsink to improved heat dissipation. Engineered with modular LED strips and end-caps allowing the mask tray to drop for fast and toolless re-assembly after sale service.

In the replacement projects, led weather proof batten Batman B1 with 118mm width rarely needs to repaint the installation position, which allows for an extremely easy and quick installation. 1:1 replacement for 2-tubes fluorescents, made by more affordable price, better quality and more energy saving.

Constructed to be a versatile solution for all applications, led lighting batten B1-DA series all reserved power supply and dimming main line, support double-end splicing function, provide more powerful scalability, is the high-end benchmark of battens.




FANXSTAR LED Linear Batten fixture Batman B1 Specification

Item Part Number B1-2FT20-MMK-DA B1-4FT40-MMK-DA B1-5FT60-MMK-DA
Description Professional Dimming Diffused LED Battens
Working Mode of Operation DALI2.0, 0.01-100% Dimming
Input Voltage&Frequency 220-240Vac, 50/60Hz
Wiring Connection PA14/PA16/923 Terminal blocks for Series connection
Output Light Source High lumens SMD2835
Color Temperature MM=27-65 stands for 2700-6500K
Luminous Flux 120lm/w±10%
Power Consumption 20W 40W 60W
Controls Protection Overcharge, low voltage disconnect, overcurrent, short circuit
Multimode DALI2.0 Sensor, Brightness Control, 0-10V Dimmable as options
Physical Construction Diffuser - high transmission opal polycarbonate, chassis - polycarbonate
Mounting Surface mounted - ceiling/wall/suspend
Colour White RAL9016
Dimensions L x W x H(mm) 600x118x72 1200x118x72 1500x118x72
IP/IK Rating IP40 & IK08
Weight 1.5kg 2.4kg 2.9kg
Warranty 5 years on product
Environment Operating Temperature -30°to 50°C
Relative Humidity -10 to 95%
Compliance Standards CE/UKCA/RCM

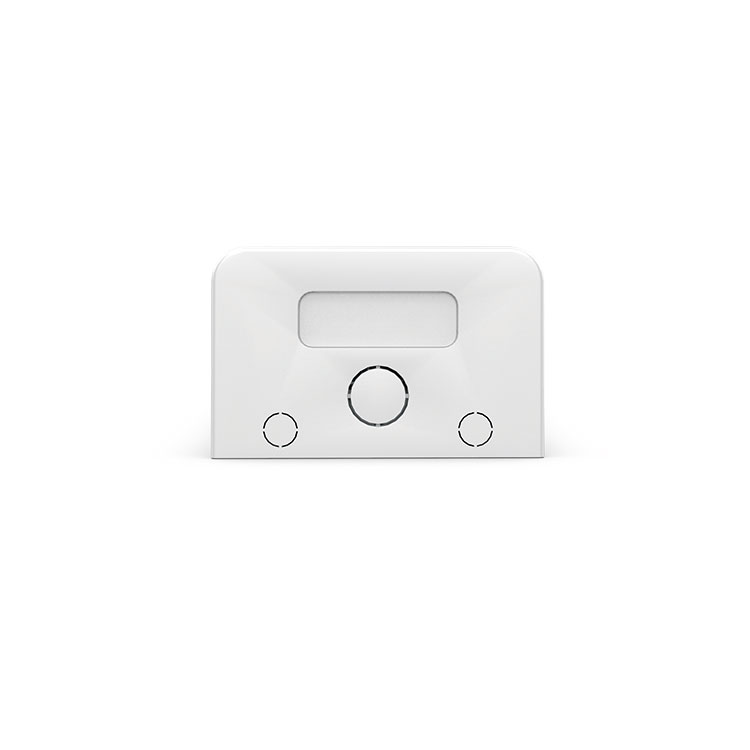

Accessories Dimmable Sensor P/N: B1-DAS: DA9033A
Remote Control Non


FANXSTAR LED Batten lighting fixtures Batman B1 Feature And Application

Replaceable LED Driver and Strips

1:1 replacement for 2-lamps T5/T8 fluorescent

No shadow diffuser/prism made by Unique design

Premium AL6063 body for improved heat dissipation

Max 50 meters extra long series extension with RPC(Rear power connectors).

DALI Dimming, Emergency and Sensor options available



FANXSTAR LED Batten light Batman B1 Details

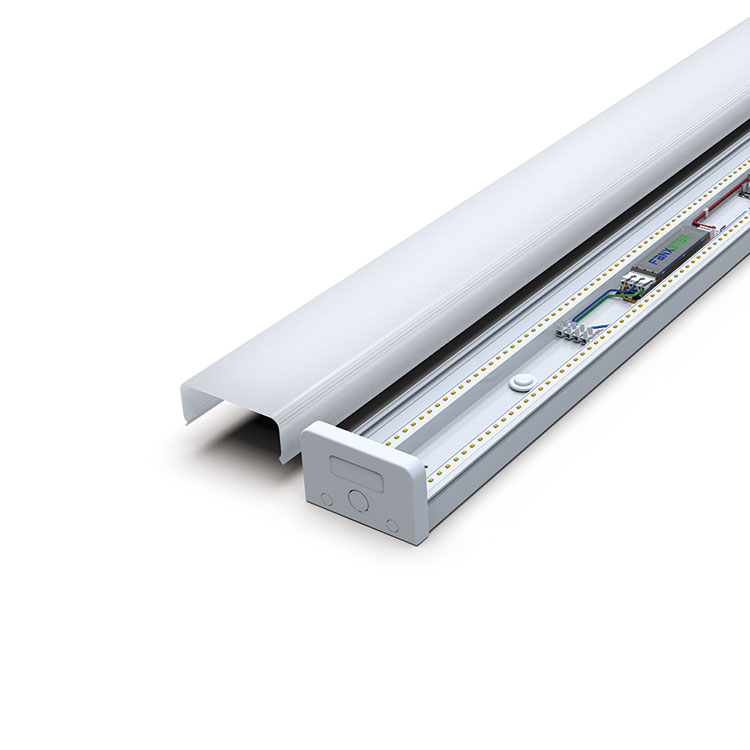

Replaceable LED Driver and Strips, rear and end cable entry options of LED Batten luminaire

IP40 LED Battens 1:1 replacement for 2-lamps T5/T8 fluorescent

No shadow diffuser/prism made by Unique design, Premium AL6063 body for improved heat dissipation LED weather-proof Batten

0-10V/DALI Dimming, Emergency and Sensor options available of Emergency LED Batten lights


LED Linkable Batten Batman B1 Dimensions


LED Batten Fixtures Batman B1 Packing


LED Batten Fittings Installation

Surface mounted and suspend mounted available
