Fanxstar proudly stands at the cutting-edge as a leading and distinguished manufacturer and supplier of On or off Sensor LED Sensor Battens deeply rooted in China. Our renowned Batman B1 serves as high performance LED diffused battens for AU VEET/IPARD that strongly underscores our unwavering dedication to setting high-quality and highly competitive benchmarks.
Over the past 7 years, our central mission has remained steadfast and unwavering: delivering exceptional and remarkable On or off Sensor LED Sensor Battens widely acknowledged for their superior and excellent quality and competitive and reasonable pricing. Our global presence extends extensively across 90 countries and regions, strongly bolstered by our robust and powerful export network. Our commitment remains resolute and determined: actively engaging with partners and clients to consistently innovate and evolve LED batten lights that prioritize flexible, personalized, and user-centric design. This unwavering and unshakable commitment drives us towards a mutually beneficial and highly successful business model, ensuring great success and high satisfaction for all stakeholders involved.

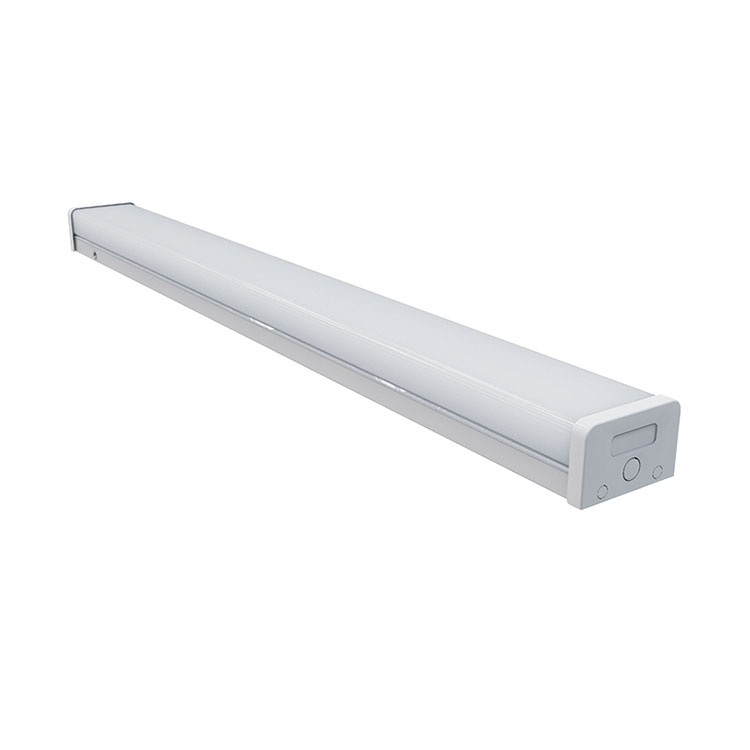

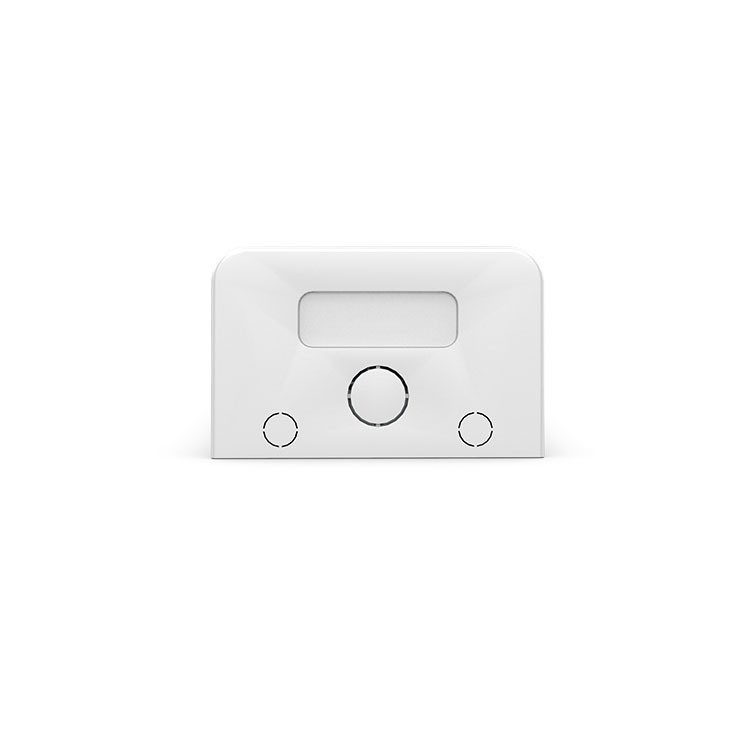

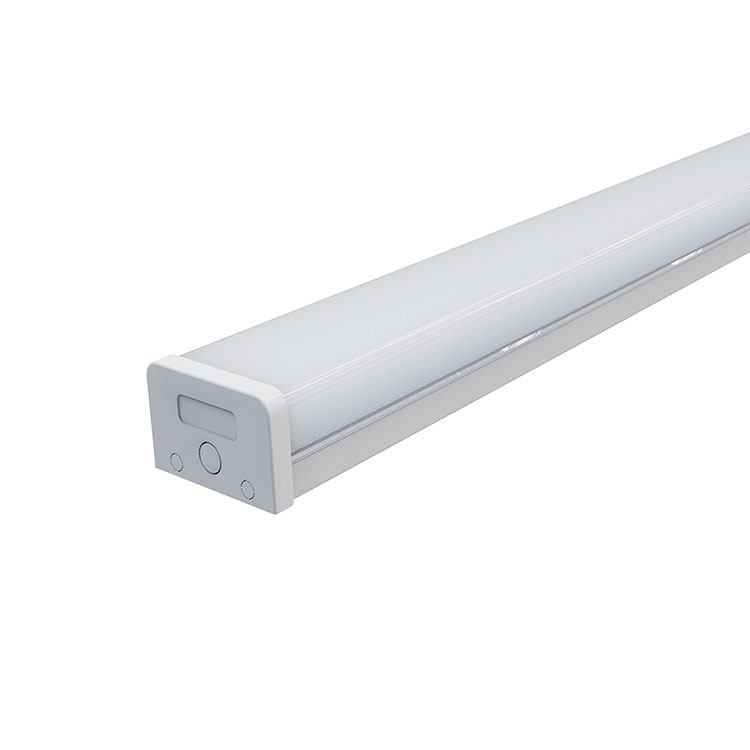

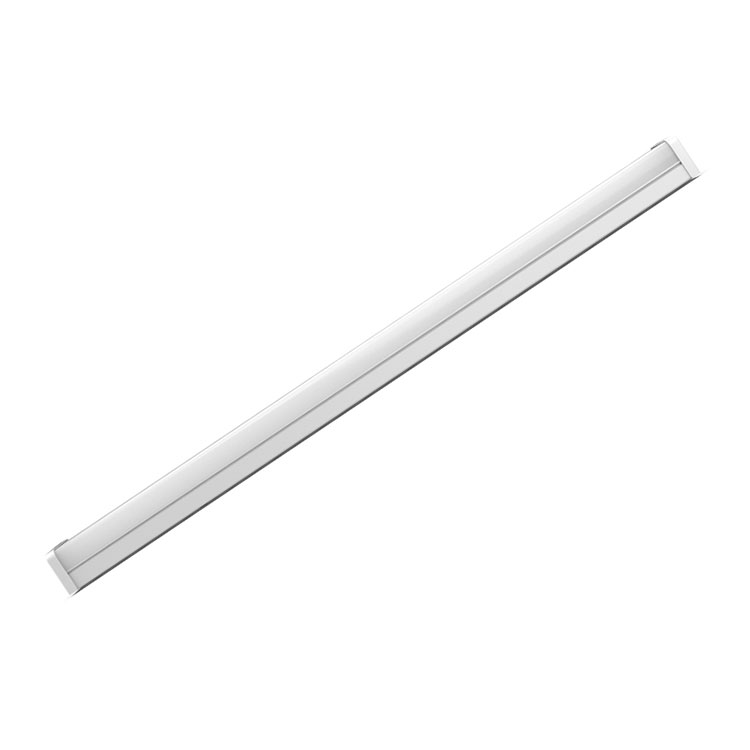

Conceived from the very beginning, the Batman B1 is a one-of-a-kind diffused LED batten luminaire is characterized by Aluminum 6063 heat dissipation device to improved heat dissipation. Developed with segmented LED strips and terminal caps allowing the covering plate to descend for fast and toolless reconstitution after sale service.
In the substitution projects, LED Tri-proof batten Batman B1 with 118mm width seldom requires to redo the painting the installation site, which allows for an extraordinarily simple and quick installation. one-to-one substitution for 2-tubes fluorescent lamps, produced through more affordable price, better quality and more energy-efficient.
A notable characteristic of the vapor tight batten B1-Sensor series is turn on/off 5.8G microwave Sensor, which can be mounted high up to 8M, enhance both convenience and energy efficiency for whole lighting. LED batten luminaire comes with 5-year warranty.
Item | Part Number | B1-2FT20-MMK-S | B1-4FT40-MMK-S | B1-5FT60-MMK-S |
Description | Dual PD build-in Dimmable Microwave Sensor Batten | |||
Working | Mode of Operation | 0-10V/ 10VPWM | ||
Input | Voltage&Frequency | 220-240Vac, 50/60Hz | ||
Wiring Connection | PA14/PA16/923 Terminal blocks for Series connection | |||
Output | Light Source | High lumens SMD2835 | ||
Color Temperature | MM=27-65 stands for 2700-6500K | |||
Luminous Flux | 120lm/w±10% | |||
Power Consumption | 20W | 40W | 60W | |
Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
Multimode | On/off, Brightness Contro0 | |||
Physical | Construction | Diffuser - high transmission opal polycarbonate, chassis - polycarbonate | ||
Mounting | Surface mounted - ceiling/wall/suspend | |||
Colour | White RAL9010 | |||
Dimensions L x W x H(mm) | 600x118x72 | 1200x118x72 | 1500x118x72 | |
IP/IK Rating | IP40 & IK08 | |||
Weight | 1.5kg | 2.4kg | 2.9kg | |
Warranty | 5 years on product | |||
Environment | Operating Temperature | -30°to 50°C | ||
Relative Humidity | -10 to 95% | |||
Compliance | Standards | CE/UKCA/RCM | ||
Accessories | Dimmable Sensor | P/N: B1S: MS001E/MS011/MS011E | ||
Remote Control | MR003 or MR004 |
High ambient temperature up to 55ºC
1:1 replacement for 2-lamps T5/T8 fluorescent
No shadow diffuser/prism made by Unique design
Premium AL6063 body for improved heat dissipation
Max 50 meters extra long series extension with RPC(Rear power connectors).
0-10V/DALI Dimming, and Sensor options available
Optional:
Dual-PD options:sunlight and leds, MS011E
On/off sensor: 8M ceiling light with RF Controller, MS001E
MS011/ MS011E | |
Microwave frequency | 5.8GHz±75MHz |
Microwave power | <0.3mW |
Sensitivity | 100%/75%/50%/25% |
Hold time | 3s/30s/90s/5min/15min/30min |
Daylight threshold | 5Lux/25Lux/50Lux/100Lux/150Lux/300Lux/500Lux/Disable |
Stand-by period | 5s/5min/15min/30min/60min/+∞ |
Stand-by dimming level | 0%/20%/30%/50% |
Mounting height | Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted) |
Detection range | Radius Max.6m (Ceiling mounted); Max.8m (Wall Mounted 1.8) |
Size (L*W*H) | 75*19*15mm |
Replaceable LED Driver and Strips, rear and end cable entry options of LED Batten luminaire
LED Batten Fixture 1:1 replacement for 2-lamps T5/T8 fluorescent
No shadow diffuser/prism made by Unique design, Premium AL6063 body for improved heat dissipation LED Customized Batten
0-10V/DALI Dimming, Emergency and Sensor options available of Emergency LED Batten Lamp

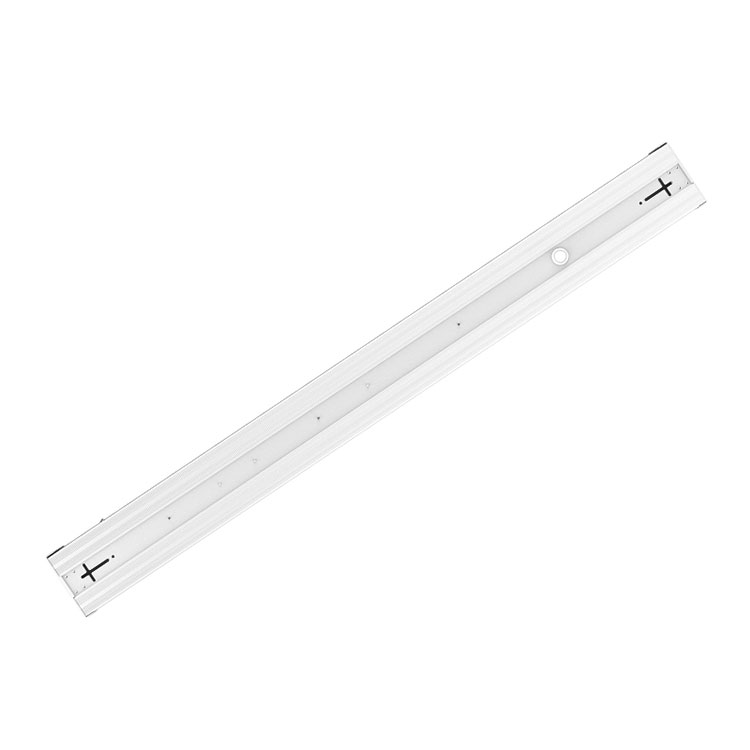

Surface mounted and suspend mounted available
