Microwave Sensor LED Linkable Batten

Fanxstar, a prominent Microwave Sensor LED Linkable Batten manufacturer in China, stands at the forefront of the industry. The highly regarded Batman B2, a High-performance LED diffused Batten light, showcases its unwavering dedication to quality and competitiveness. For over seven years, its constant mission has been to deliver exceptional LED batten lamps globally recognized for their outstanding quality and competitive pricing. With a global reach spanning more than 90 countries and regions backed by a robust export network, its commitment remains steadfast. By closely collaborating with partners and clients, it continuously innovates and refines the LED batten lights, emphasizing adaptability, personalization, and user-centered design, driving towards a mutually beneficial business model for all stakeholders' success and satisfaction.

Send Inquiry

Product Description

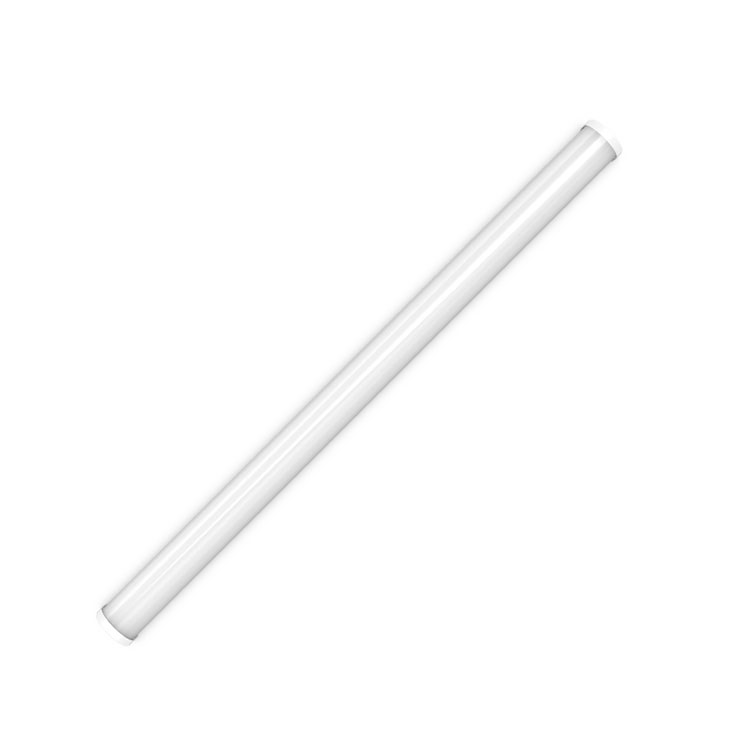

FANXSTAR High Performance LED Diffused Battens for AU VEET/IPARD
On/off Sensor or Dimmable 5.8G Microwave Sensor Options Batman B2

The led linkable batten Batman B2 Sensor series has ultimate an 11mm super-narrow antenna, ensuring that there are no shadow when operating in sensor mode. The linear led batten boasts an integrated 5.8G microwave motion sensor, remote controlled for intelligent performance, enabling B2S to be ceiling-mounted at 5-6m. And the Microwave Sensor LED Linkable Batten fixtures comes with a 5-years warranty.

MS010ER provides tri-level dimming control and the flexibility to customize the detection range and hold time to suit your specific requirements. To meet more engineering needs, a 5.8G microwave motion sensor with a built-in 2.4GHz RF grouping function is available as an option.

In addition to these, on/off 5.8G microwave Sensor MS001E for the led batten fittings B2S can be mounted high up to 8 Meters, enhance both convenience and energy efficiency for whole lighting.

Specification data for FANXSTAR LED Batten light B2

Item	Part Number	B2-2FT20-MMK-S	B2-4FT40-MMK-S	B2-5FT60-MMK-S
	Description	Dual PD build-in Dimmable Microwave Sensor Batten
Working	Mode of Operation	0-10V/ 10VPWM
Input	Voltage&Frequency	220-240Vac, 50/60Hz
	Wiring Connection	PA14/PA16/923 Terminal blocks for Series connection
Output	Light Source	High lumens SMD2835
	Color Temperature	MM=27-65 stands for 2700-6500K
	Luminous Flux	140lm/w±10%
	Power Consumption	12-20W	28-40W	42-60W
Controls	Protection	Overcharge, low voltage disconnect, overcurrent, short circuit
	Multimode	On/off, Brightness Control
Physical	Construction	Diffuser - high transmission opal polycarbonate, chassis - polycarbonate
	Mounting	Surface mounted - ceiling/wall/suspend
	Colour	White RAL9016
	Dimensions L x W x H(mm)	600x64x80	1200x64x80	1500x64×80
	IP/IK Rating	IP20 & IK08
	Weight	1.2kg	1.6kg	1.9kg
	Warranty	5 years on product
Environment	Operating Temperature	-30°to 50°C
	Relative Humidity	-10 to 95%
Compliance	Standards	CE/UKCA/RCM
Accessories	Dimmable Sensor	P/N: B2S: MS001E/MS010/MS010E/MS010ER
	Remote Control	MR003 or MR004

FANXSTAR LED Batten lighting luminaire Batman B2 Feature And Application

Both rear and end cable entry are available

Simple clip design and interlocking power cord for easy installation

Flat end allows for end-to-end light designs

1:1 replacement for 1/2-lamps T5/T8 fluorescent

Premium AL6063 body to improve heat dissipation

LED Linkable Batten Dimmable 5.8G Microwave Sensor Data

Only 11mm width super compact antenna make no darkness for B2S

Optional:

Dual-PD options:sunlight and leds, MS011E

On/off sensor: 8M ceiling light with RF Controller, MS001E

	MS010 / MS010R / MS010ER
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Sensitivity	100%/75%/50%/25%
Hold time	3s/30s/90s/5min/15min/30min
Daylight threshold	5Lux/25Lux/50Lux/100Lux/150Lux/300Lux/500Lux/Disable
Stand-by period	5s/5min/15min/30min/60min/+∞
Stand-by dimming level	0%/20%/30%/50%
Mounting height	Max.5m (Ceiling mounted); 1.5-1.8m (Wall Mounted)
Detection range	Radius Max.6m (Ceiling mounted); Max.8m (Wall Mounted 1.8)
Size (LWH)	751915mm
