Steel Body LED Fixture Linear Batten

Fanxstar stands proudly as a premier manufacturer and supplier of Steel Body LED Fixture Linear Batten within China. Our esteemed Batman B3 exemplifies our commitment—competitive splice High output batten that signifies our dedication to innovation and quality. For the past 7 years, our focus has been unwavering: delivering exceptional LED batten luminaires known for their superior quality and competitive pricing. Our global reach extends across 90 countries and regions through our robust export network. Our pledge remains resolute: actively collaborating with partners and customers, persistently innovating to craft LED batten lights that are more adaptable, personalized, and user-centric. This steadfast dedication propels us towards a mutually beneficial business model, ensuring success and satisfaction for all involved.

Send Inquiry

Product Description

FANXSTAR Unmatched Combination of Economic and Performance LED
Batten Fixtures Batman B3

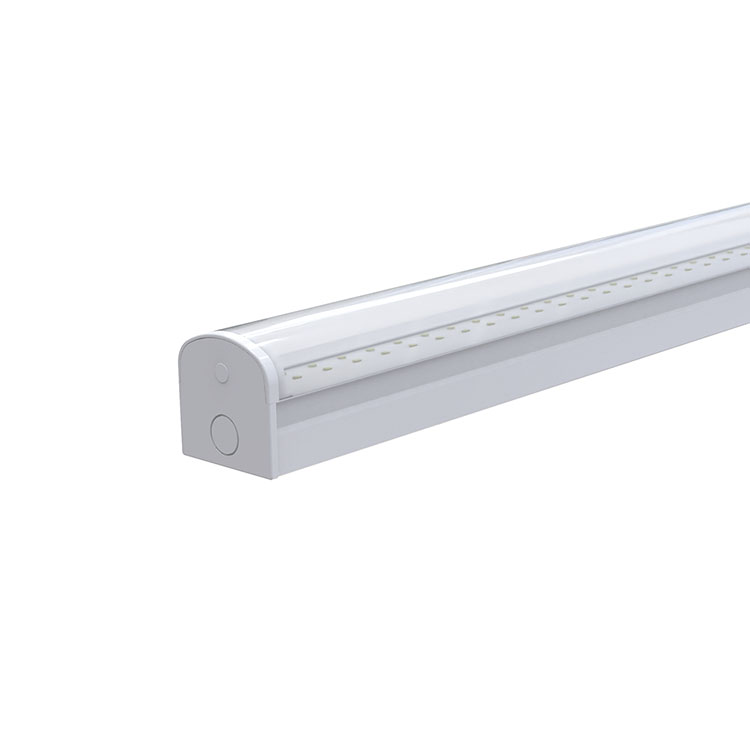

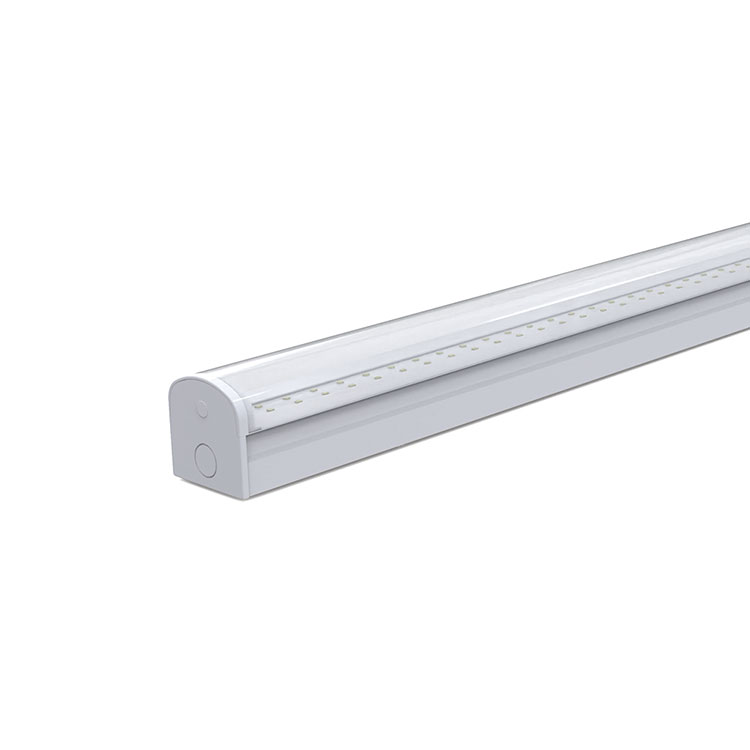

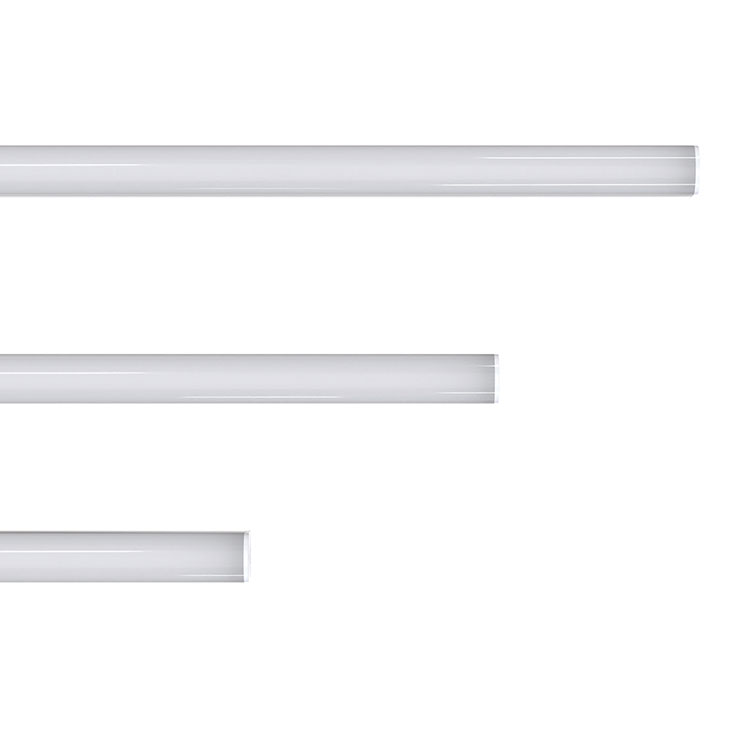

The Classic LED Fixture Battens from the Batman B3 range serve as replacements for 4ft/5ft/6ft fixtures, featuring end and rear cable entry options. Their flat end profile enables seamless end-to-end lighting designs.

The Steel Body LED Fixture Linear Batten series offers multiple current options:

- 4FT: 18W-24W-30W-36W

- 5FT: 24W-30W-36W-42W

- 6FT: 36W-42W-48W-54W

Furthermore, these battens provide a choice of Tri-CCT with options including 3000K/4000K/5700K.

The led batten luminaire Batman B3 range enhances energy efficiency by reducing power consumption while achieving a product light efficiency of up to140lm/w, resulting in a brightness improvement of approximately 38%. This not only saves more energy but also meets the energy efficiency requirements of ERP.

Additionally, compared to previous linear lamps, linear led batter fixture Batman B3 utilizes modified engineering plastics that are degradable and environmentally friendly, effectively reducing carbon emissions.

Normal, Dual-way/3CCT and Emergency Datasheet for FANXSTAR LED Batten Light Batman B3

LED Batten Specifications data with 1200mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	B3-4FT30-MMK-X	4' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power30W, 80CRI, 20-65K LED Qty 266pcs	2700k ~ 6500K	140 lm/W
□	3CCT	B3-4FT30-MMK-CCT	4' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 30W, 80CRI, 20-65K 3000K/4000K/5700K Switchable Dual-way 4000K Options available	3000K 4000K 5700K	125m/w 140m/w 130m/w
□	EMG	B3-4FT30-MMK-E	4' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 30W, 80CRI, 20-65K Emergency 2W3HRS LiFePO4 AS/NZS 2293.3 compliant	2700k ~ 6500K	140 lm/W

LED Batten Specifications data with 1500mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	B3-5FT40-MMK-X	5' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 40W, 80CRI, 20-65K LED Qty 342pcs	2700k ~ 6500K	140 lm/W
□	3CCT	B3-5FT40-MMK-CCT	5' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 40W, 80CRI, 20-65K 3000K/4000K/5000K Switchable Dual-way 4000K Options available	3000K 4000K 5700K	125m/w 140m/w 130m/w
□	EMG	B3-5FT40-MMK-E	5' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 40W, 80CRI, 20-65K Emergency 2W3HRS LiFePO4 AS/NZS 2293.3 compliant	2700k ~ 6500K	140 lm/W

LED Batten Specifications data with 2400mm length

	Version	Item No.	Description	MM=Color temp.	Luminous flux
□	Extra	B3-6FT50-MMK-X	6' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 50W, 80CRI, 20-65K LED Qty 464pcs	2700k ~ 6500K	140 lm/W
□	3CCT	B3-6FT504-MMK-CCT	6' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 50W, 80CRI, 20-65K 3000K/4000K/5000K Switchable Dual-way 4000K Options available	3000K 4000K 5700K	125m/w 140m/w 130m/w
□	EMG	B3-6FT504-MMK-E	6' Diffused LED Batten light, Voltage200-240V 50/60Hz, Power 50W, 80CRI, 20-65K Emergency 2W3HRS LiFePO4 AS/NZS 2293.3 compliant	2700k ~ 6500K	140 lm/W

FANXSTAR LED Batten lighting fixtures Batman B3 Feature And Application

Conduit entry points at both ends.

Suitable for central BESA mounting.

Steel body construction with powder coat finish.

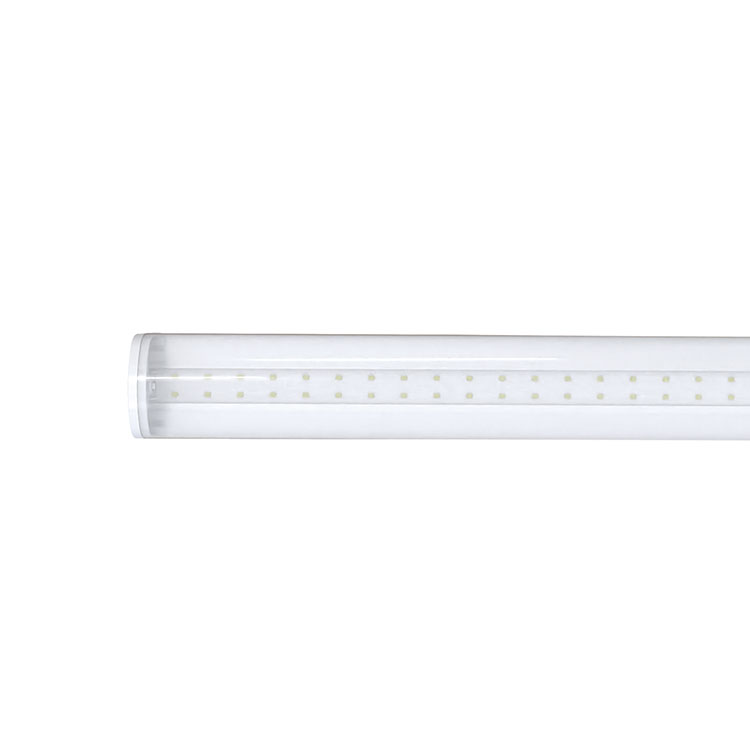

Unique opal diffuser design for optimum performance and light distribution.

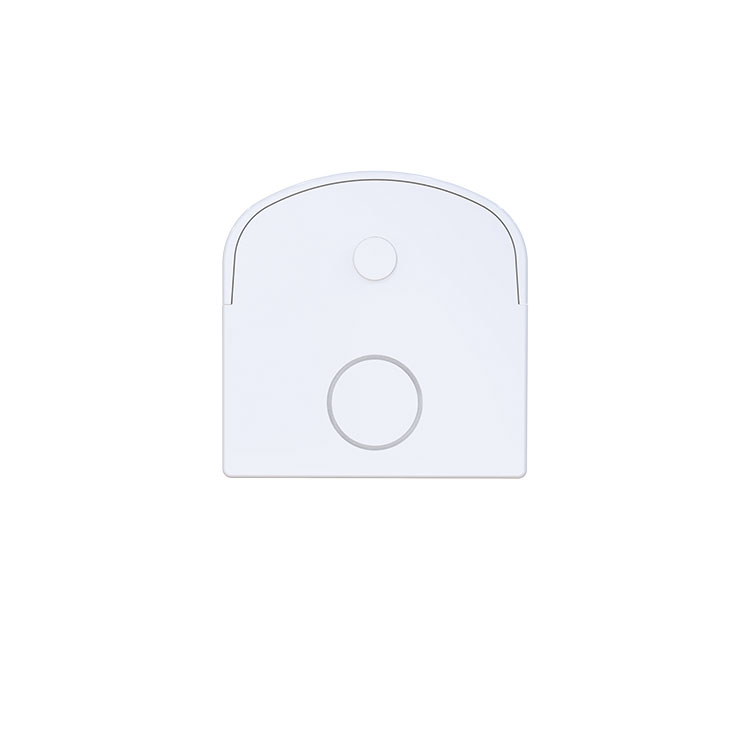

Polycarbonate end caps.

Nstant light output with unlimited switching.

Flicker free LED driver built-in for increased visual acuity and comfort.

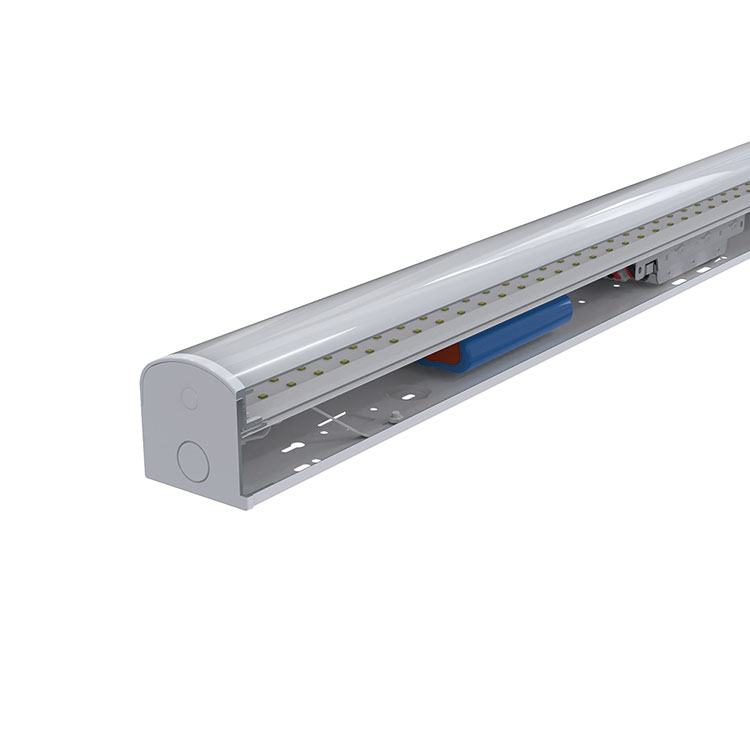

Option for emergency with Lithium Iron Phosphate Battery.

On/off Sensor or Dimmable 5.8G Microwave Sensor.

DALI2.0 and 1-10V dimming available.

Application:

Linear LED Fixture batten Batman B3 Series can be the illumination solution in commercial, industrial, retail and residential applications. Fixtures can be used in storage/utility ares, coves, display cases, shops, task and general area lighting.
